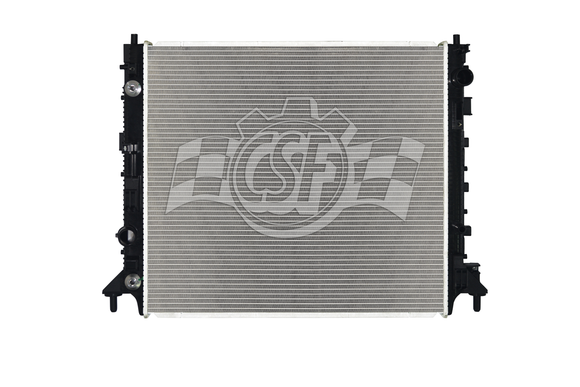

CSF 16-19 Cadillac CTS 6.2L SC / 16-21 Chevrolet Camaro 6.2L Radiator

CSF 16-19 Cadillac CTS 6.2L SC / 16-21 Chevrolet Camaro 6.2L Radiator

$239.99 CAD

Shipping calculated at checkout

CSF SKU: csf3905

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

3905

Bottom Hose Fitting (in): 1 5/16 Left (in)
Box Height (in): 7 1/16
Box Length (in): 31 7/16
Box Weight (lbs): 15
Box Width (in): 24 3/4
Core Length (in): 22 5/8 (in)
Core Material: Aluminum
Core Thickness (in): 1 5/8 (in)
Core Width (in): 20 3/8 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 20 7/8
Inlet Width (in): 2 3/16
No. Of Rows: 2
Oil Cooler (in): 14 3/4 (High-efficiency Plate Type)
Outlet Length (in): 20 7/8
Outlet Width (in): 2 3/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect oil cooler fittings. Upgraded Heavy Duty Core. 17% Thicker 2 Row 42mm core to vs OEM 1 Row 36mm core
Top Hose Fitting (in): 1 5/16 Right (in)
Make Model Qualifiers Year
Cadillac CTS
  • Position: N/A
  • V
  • 6.2L V8 6162cc 376ci
  • Supercharged
 2016-2019
Chevrolet Camaro
  • Position: N/A
  • 6.2L V8 6162cc 376ci
 2016-2022
Reference Number Reference Name
13599 DPI
23477182 OEM
GM3010600 Partslink
