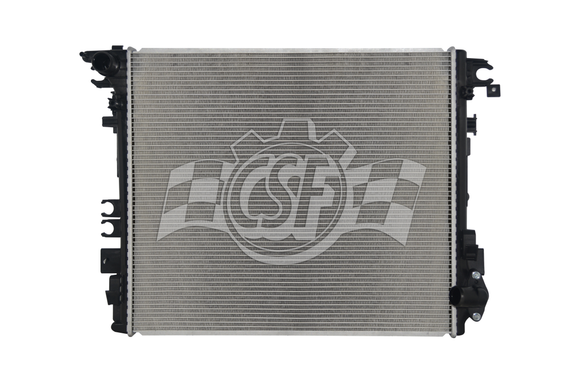

CSF Jeep Wrangler JL / Gladiator JT (2.0 / 3.0 / 3.6L) OEM Replacement Radiator

CSF Jeep Wrangler JL / Gladiator JT (2.0 / 3.0 / 3.6L) OEM Replacement Radiator

$244.99 CAD

Shipping calculated at checkout

CSF SKU: csf3953

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

3953

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 3/8 Right (in)
Box Height (in): 7 13/16
Box Length (in): 30 1/4
Box Weight (lbs): 11
Box Width (in): 22 3/4
Core Length (in): 21 15/16 (in)
Core Material: Aluminum
Core Thickness (in): 1 3/16 (in)
Core Width (in): 19 5/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 19 15/16
Inlet Width (in): 1 9/16
No. Of Rows: 1
Oil Cooler (in): No
Outlet Length (in): 19 15/16
Outlet Width (in): 1 9/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tank & Aluminum core. Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm
Top Hose Fitting (in): 1 3/8 Left (in)
Make Model Qualifiers Year
Jeep Gladiator
  • Position: N/A
  • 3.6L V6 3604cc 220ci
 2020-2023
Jeep Gladiator
  • Position: N/A
  • 3.0L V6 2987cc 182ci
  • Turbocharged
  • DIESEL
 2021-2023
Jeep Wrangler
  • Position: N/A
  • 3.6L V6 3604cc 220ci
  • GAS
 2018-2024
Jeep Wrangler
  • Position: N/A
  • 3.0L V6 2987cc 182ci
  • Turbocharged
  • DIESEL
 2020-2023
Jeep Wrangler
  • Position: N/A
  • 3.6L V6 3604cc 220ci
  • MILD HYBRID EV-GAS (MHEV)
 2020-2023
Jeep Wrangler
  • Position: N/A
  • 2.0L L4 1997cc 122ci
  • Turbocharged
  • PLUG-IN HYBRID EV-GAS (PHEV)
 2021-2024
Jeep Wrangler
  • Position: N/A
  • 2.0L L4 1997cc 122ci
  • Turbocharged
  • GAS
 2019-2023
Jeep Wrangler
  • Position: N/A
  • 2.0L L4 1997cc 122ci
  • Turbocharged
  • MILD HYBRID EV-GAS (MHEV)
 2020
Reference Number Reference Name
13754 DPI
68314786AC OEM
CH3010387 Partslink
