BMW G8X M3/M4 High-Performance Radiator Front Mount Heat Exchanger

8215

When the new M3/M4 was released in late 2020, it didn't take long to see them hit the track. CSF's Engineers and Motorsports department was in attendance for some of the first track days that local R&D Partners & Premier Dealers Studio RSR and Art of Attack took their new G8Xs to.

While in stock form, the G8X's factory cooling system does a decent job keeping up with the cooling demands. While this was true of the car in factory spec, those results changed when the cars were modified and started pushing more power. CSF quickly observed issues with heat soak in the charge-air system. This overheating of the intercooling system causes a spike in Intake Air Temperatures (IATs). Subsequently, the ECU started pulling timing which decreases power output. In extreme cases this can also send the car into limp mode. This problem became even more prevalent as testing continued into the hot summer months.

CSF worked closely with race teams throughout North America such as Studio RSR, Art of Attack, as well as premier dealer Precision Sport Industries throughout the prototyping and development process. The feedback gathered from daily driving, track days, and competitive drag racing events has led to the best possible iteration of the Front Mount Heat Exchanger.

Design & Engineering

With well over 100 track hours worth of testing and thousands of miles on the road, you can be assured that the CSF's new High-Performance Front Mount Heat Exchanger has been thoroughly tested and vetted.

CSF vs OEM

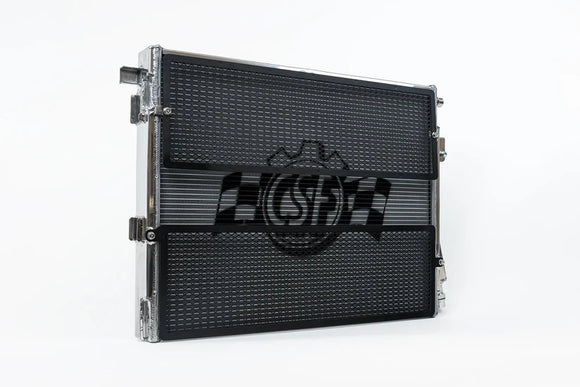

The CSF Heat Exchanger features a 2-Row (vs OEM single row) Core that is 42mm thick with CSF's Exclusive B-Tube Technology. Increasing the size of the core and end tanks adds to the overall volume of the system which helps absorb more heat. The more efficient core not only helps dissipate more heat from the system, but also provides better airflow into the radiator that sits behind the heat exchanger. For vehicles equipped with the ZF8 Automatic Transmission, the heat exchanger core specifications were designed concurrently with CSF's Race-Spec Dual Core Transmission Oil Cooler (CSF #8221).

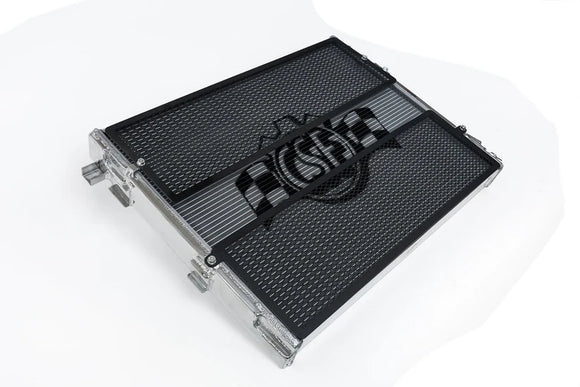

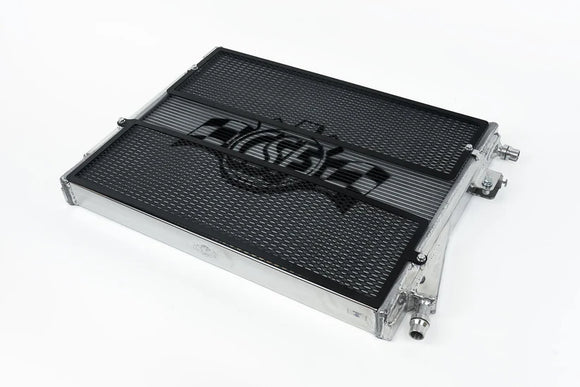

The two included Black Rock Guards offer full protection for the heat exchanger (above and below the crash bar), especially when paired with aftermarket "open face" race style grilles. These grilles are quite popular for performance and aesthetics, and keeping your heat exchanger safe from debris is very important.

• Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
• Improves Air Flow to the Rest of the Cooling System for Lower Engine Coolant and Engine Oil Temperatures
• 2-Row, 42mm Ultra-High-Performance Core
• 6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology

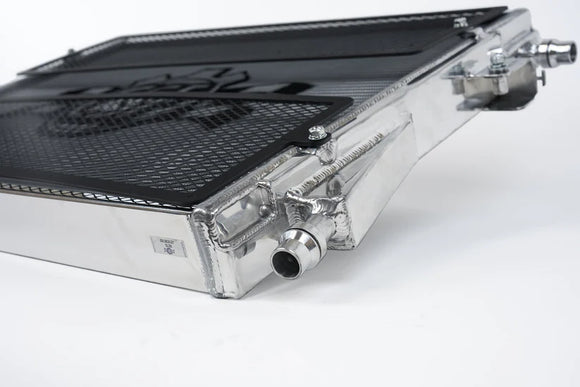

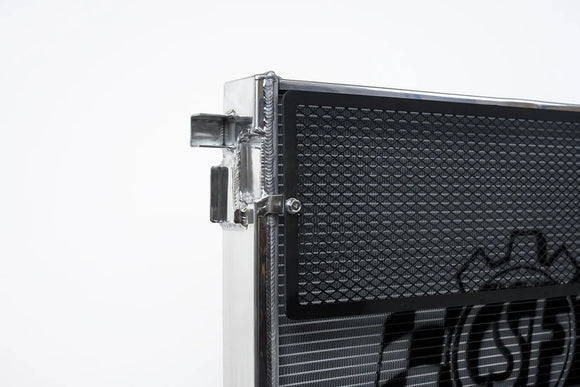

• CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Includes Black Rock Guards (upper and lower) & Transmission Cooler Mounting Kit - Upper and Lower Rock Guards for Manual Transmission / Upper Rock Guard and Transmission Cooler Mounting Kit for ZF8 Auto

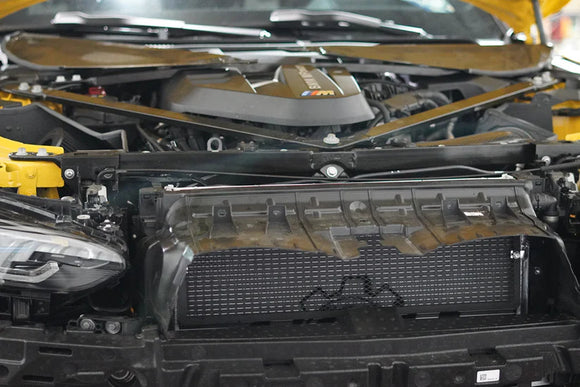

• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• 2-Year Limited Warranty
• 1-Hour "Mirror Finish" Hand Polish
• Tested and Proven by CSF's Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers

• BMW: 17 11 8 095 283
• BMW: 17-11-8-095-283
• BMW: 17118095283
