Front Mount Intercooler Kit (FMIC) for 1.9 TDI VE 90 & 110 (With VNT17 Turbocharger)

Front Mount Intercooler Kit (FMIC) for 1.9 TDI VE 90 & 110 (With VNT17 Turbocharger)

$1,039.99 CAD

Shipping calculated at checkout

Darkside Developments

Silicone Colour:: Black

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

DSD1910

Darkside Upgraded Front Mount Intercooler Kit (FMIC)

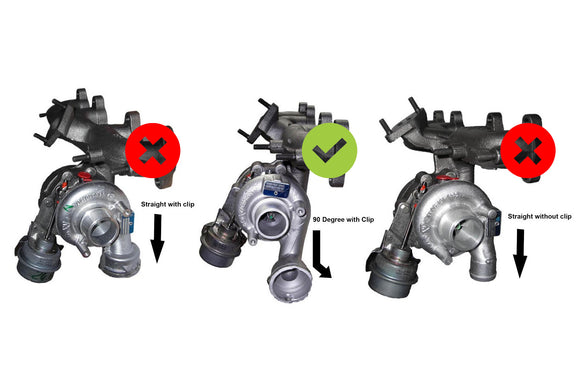

 Fits ALL Mk4 Platform VW / Audi / Seat and Skoda Vehicles with the 1.9 TDi VE 90 and 110 Engines Fitted with a VNT17 Turbocharger


The Kit replaces the stock plastic pipe work and unnecessary joints that can cause boost leaks. The end tanks of the Intercooler are also Alloy so will also hold a higher level of boost, the thicker core offers vastly improved cooling capacity

The welded Alloy Pipes are 51mm and fit perfectly in place of the stock turbo pipes

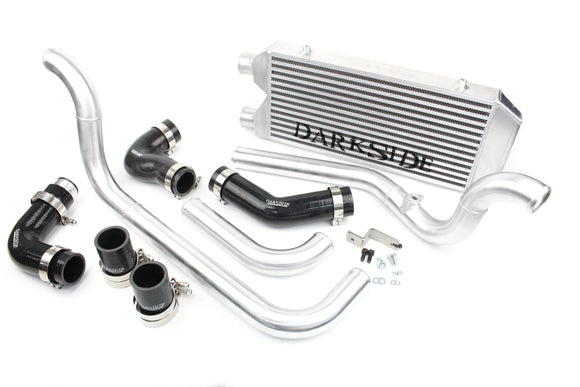

This kit consists of:

Darkside Developments Alloy Pipe Kit with MAP Sensor Boss
Darkside Developments Alloy Front Mount Intercooler
Darkside Developments Silicone Hoses
Stainless Steel Clamps

The EGR Delete for the 90 / 110 / PD100 and PD115 to be used with this kit is listed here - https://www.darksidedevelopments.co.uk/products/darkside-1-9-8v-tdi-ve-90-110-and-pd100-pd115-egr-delete-race-pipe-51mm.html

 This will fit the following vehicles with the 1.9 8v TDi Engine (With VNT17 Turbocharger Installed):

VW Golf Mk4 - ALH / AGR 90, ASV / AHF 110
VW Bora / Jetta - ALH / AGR 90, ASV / AHF 110

Intercooler Dimensions
Core Size: 500mm x 235mm x 60mm
Overall Height: 235mm
Overall Length: 640mm

All the silicones included in the kit may require slight Trimming to suit your set up, These are left long to take in to consideration tolerances between cars. This kit is also VERY close to other parts in the Engine Bay, due to the lack of room available

We now offer a range of Silicone Colours - Black Silicones are in stock where as the other colours are special order and may take up to 1 week to dispatch

 THIS PIPE KIT WILL NOT FIT VEHICLES WITH XENON HEADLIGHTS, HEADLIGHT WASHER SYSTEM and SOME US SPEC CRASH BARS

If you are unsure about any of the above please email us
