Darkside DSG / Auto Gearbox Front Mounted Oil Cooler Kit for CJAA / CBEA US Spec Engines

Front Mounted Transmission Oil Cooler Kit for CJAA / CBEA US Spec Engines with DSG / Auto Gearbox / Transmission

Oil Coolers are an important addition to the DSG Gearboxes when being used for Track Days / Sprint Race / Drag Races & Fast Road Vehicles

This is a Universal Kit to be mounted where suitable, designed to fit the DQ250 DSG Transmissions. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place.

OIL COOLER SPECIFICATIONS:

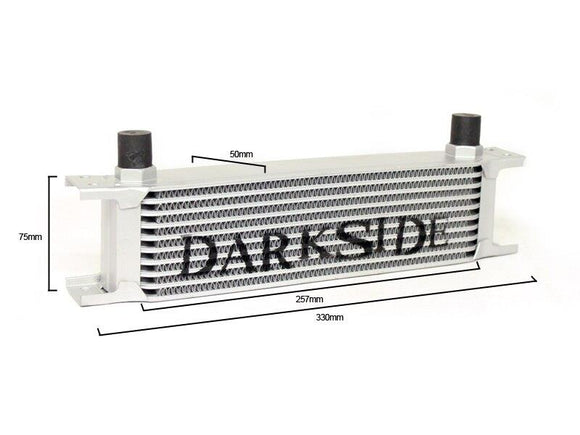

10 ROW - Max Pressure 10 BAR (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 75mm x D - 50mm
13 ROW - Max Pressure 10 BAR (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 100mm x D - 50mm

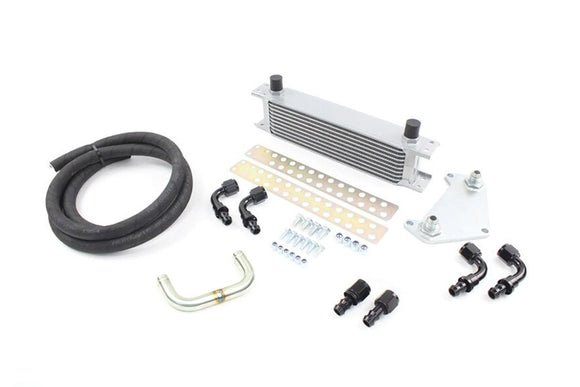

This Kit Consists of:

Oil Cooler - 10 or 13 Row
DQ250 DSG Cooler Adapter Plate
2x Straight Connectors
4x 90 Push Fit Connectors
4x 1m Push Fit Hose
Universal Bracket Kit

This Kit will fit the following Vehicles:

Audi A3 / S3 - CBEA (140)

VW Beetle - CJAA (140)

VW Beetle Cabrio - CJAA (140)

VW Bora - CBEA (140) CJAA (140)

VW Golf - CJAA (140)

VW Golf Variant - CJAA (140)

VW Jetta - CBEA (140) CJAA (140)

VW Jetta Variant - CBEA (140) CJAA (140)

VW Novo Fusca - CJAA (140)

VW Vento - CBEA (140) CJAA (140)

VW Vento Variant - CBEA (140) CJAA (140)

Replaces Genuine VW Transmission Cooler Part Numbers:

02E409061B - 02E409061 B - 02E 409 061 B
