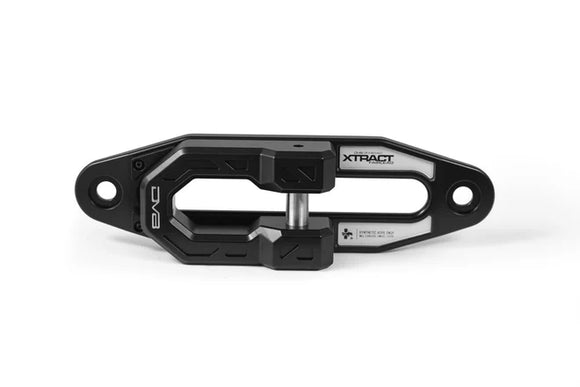

DV8 Xtract Winch Fairlead | Closed System

WBPF-02

The DV8 Xtract Winch Fairlead is engineered for strength, safety, and clean winch operation when running synthetic rope. Built around a 1 ¼” thick closed link design, this fairlead provides a secure, centered connection point. Precision CNC-machined from aerospace-grade 7075 aluminum, the Xtract Fairlead delivers an impressive 18,000 lb Working Load Limit, making it suitable for demanding recovery situations. A black military-grade hard anodized finish ensures long-term corrosion resistance and durability in harsh off-road environments.

The closed link features a Delrin rash guard to protect the link when the line is slack, or cinched tightly against the fairlead, reducing wear. A stainless steel heavy-duty pin provides reliable retention, while the fairlead base plate incorporates alignment nodules that keep the link properly positioned and centered when not in use.

Finished with reverse laser-engraved etching for a clean, durable look, the DV8 Xtract Fairlead is designed exclusively for synthetic winch rope applications. Recommended for use with a soft shackle on the link to prevent damage and maximize system longevity.

Key Features:

• 1 1/4" thick closed link
• Black military grade hard anodized finish
• Working Load Limit 18,000lbs
• CNC machine from high quality aerospace aluminum 7075
• For synthetic winch rope only
• Reverse laser engraved etching
• Stainless Steel Heavy Duty Pin
• Delrin rash guard on link to prevent damage to link when slack in line or when cinched up against fairlead base plate
• Fairlead base plate has alignment nodules to keep the link in place and align it when not being used.
• Recommend using with soft shackle on link to prevent damage

• Material:Aluminum & Delrin. Back Plate-7/16", Link/Hook-1-1/4".
• Finish:Black
• Installation Notes:Estimated 30 minute install. Only recommended to be used with synthetic rope.
