Edelbrock Stage 1 Supercharger Kit For 2011-14 Chrysler/Dodge 5.7L W/ Tune

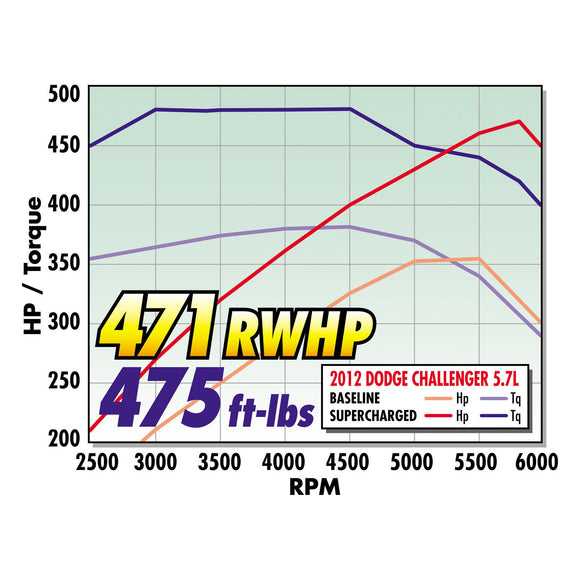

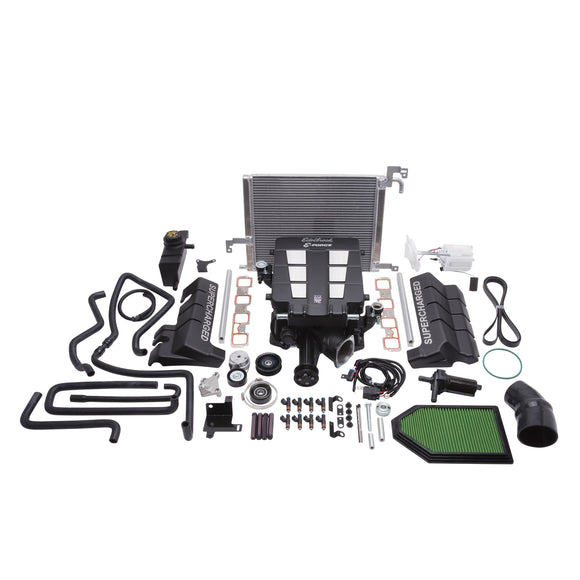

The Edelbrock Supercharger System part #1534 is designed for your 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 471 RWHP and 475 RWTQ. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347015344
System Type	Stage 1 - Street System
Vehicle Model	300
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	150 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	3.25 in
Maximum Torque	475RW ft-lb
Fuel Injector Type	46 lb/hr
Maximum Horsepower	471RW
Availability Note	Available to Order
Warranty	36 Months
Emissions Code	EO Number: D-215-89
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Finish	Black Powder Coated
Maximum Boost Pressure	6 PSI
Pulley Belt Width	6-Rib
Universal Or Specific Fit	Specific
