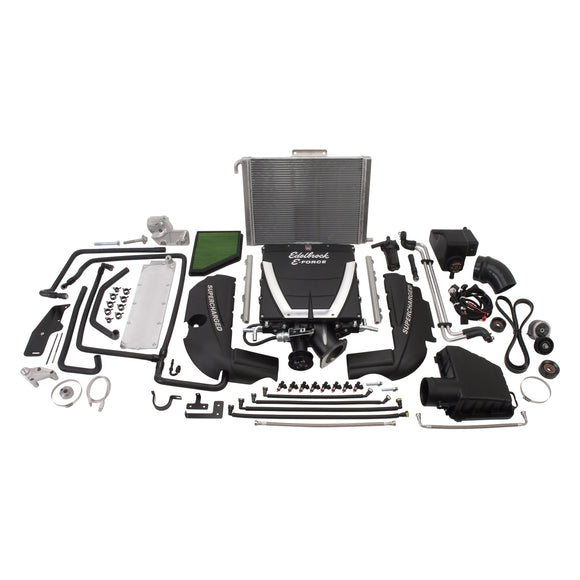

Edelbrock Stg 1 Supercharger 2010-15 Camaro SS LS3 Manual Tran W/O Tune

The Edelbrock supercharger Stage 1 Street System part #15630 for 2010-15 Camaro SS with a manual transmission increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347156306
System Type	Stage 1 - Street System
Vehicle Model	Camaro
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	150 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	3.5 in
Transmission Type	Manual
Fuel Injector Type	52 lb/hr
Availability Note	Available to Order
Warranty	36 Months
Emissions Code	EO Number: D-215-89
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Finish	Black Powder Coated
Maximum Boost Pressure	9
Pulley Belt Width	6-Rib
Universal Or Specific Fit	Specific
