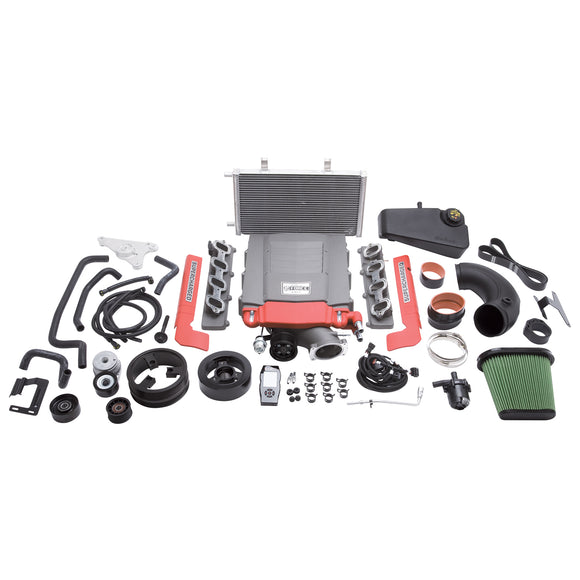

Edelbrock 14-19 Chevrolet Corvette Z51 LT1 w/ Dry Sump Supercharger Kit - Stage 2

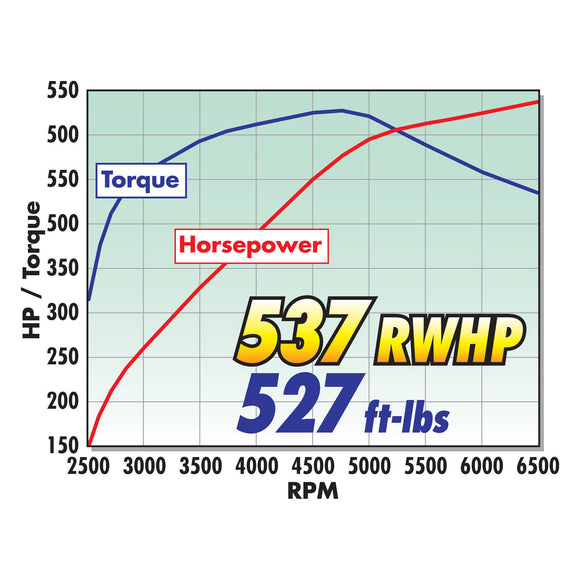

The Edelbrock supercharger stage 2 street/strip system part #15701 for 2014-19 Chevy Corvette Stingray Z51 LT1 increases the performance of your LT1 engine to 537 horsepower and 527 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15701 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347157013
System Type	Stage 2 - Street/Strip System
Vehicle Model	Corvette
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	150 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	3.25 in
Maximum Torque	527RW (With 91 Octane); 534RW (With 93 Octane) ft-lb
Maximum Horsepower	536RW (With 91 Octane); 551RW (With 93 Octane)
Availability Note	Available to Order
Warranty	36 Months
Emissions Code	EO Number: D-215-103
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Finish	Black Powder Coated
Maximum Boost Pressure	7.5 PSI
Pulley Belt Width	10-Rib
Universal Or Specific Fit	Specific
