15775

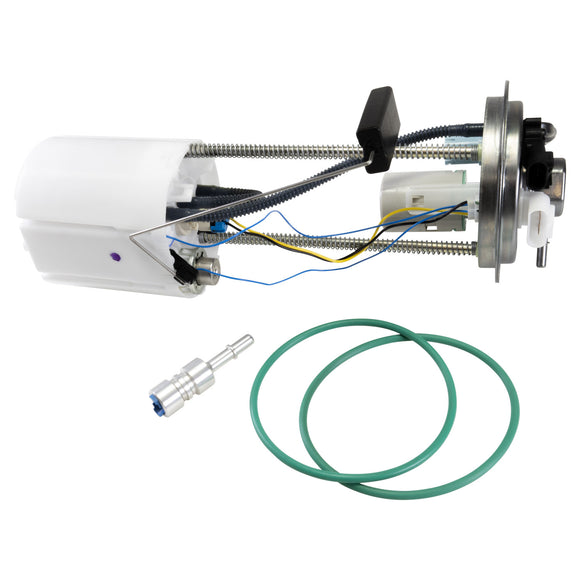

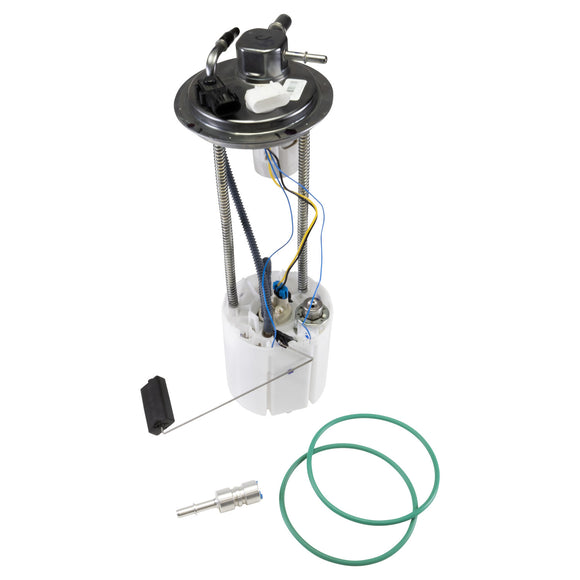

Edelbrock part #15775 is a supplemental fuel system containing a replacement fuel pump, fuel level sender and regulator hardware. This upgrade kit is ideal for GM Trucks utilizing the #1577 Edelbrock Supercharger System. This kit will only work with '07 models equipped with a non-returning style fuel system. Non-Return style fuel systems will have one fuel line coming off the fuel rail.
| Manufacturer | Edelbrock |
|---|---|
| Application | Application Specific |
| UPC | 085347157754 |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Mounting Bracket Included | No |
| Pump Design | In Tank Fuel Pump |
| Terminal Gender | Male |
| Pump Type | Electric |
| Gasket Or Seal Material | O-Ring |
| Connector Gender | Female |
| Wiring Harness Included | No |
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Strainer Included | No |
| Seal And Lock Ring Included | Yes |
| Terminal Type | Pressure Contact |
| Connector Shape | Square |
| Availability Note | Available to Order |
| Warranty | 12 Months |
| Emissions Code |
|
| Hazardous Materials Warning |
 WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Internal Or External | Internal |
| Maximum Pressure | 60 PSI |
| Mounting Type | In Tank |
| Outlet Outside Diameter | 0.375 in |
| Outlet Quantity | 1 |
| Outlet Type | Push On |
| Regulator Included | No |
| Universal Or Specific Fit | Specific |
