Edelbrock Stg 2 Complete Supercharger 05-09 Ford Mustang 4.6L 3V W/ Tune

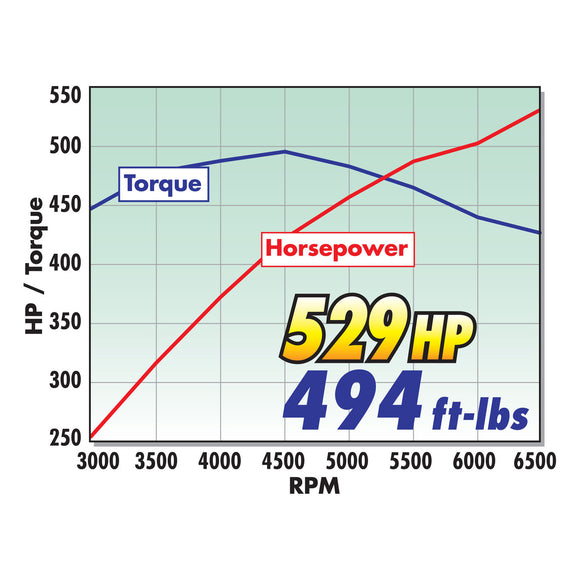

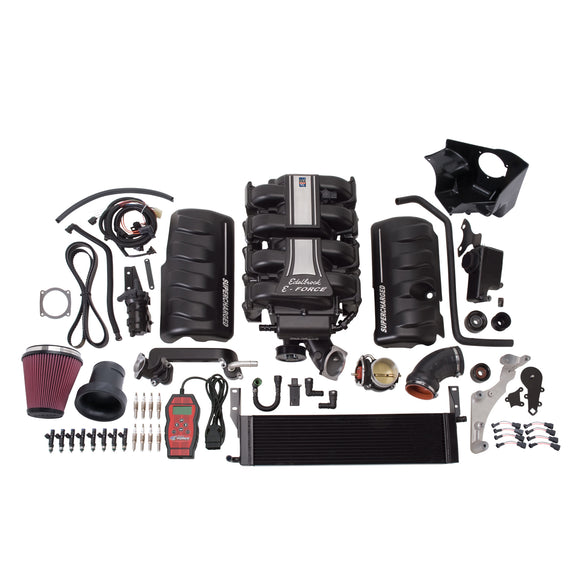

The Edelbrock supercharger Stage 2 system part #15856 for 2005-09 Ford Mustang increases the performance of your 4.6L 3V engine to 529 horsepower and 494 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This upgrade is intended for racing applications only and is not legal for use on pollution-controlled vehicles. A properly completed race-only form will need to be signed and submitted by the customer and accepted by Edelbrock to receive the race-only calibration file. A race-only calibration file will need to be modified by the customer for the specific race engine configuration.

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347158560
System Type	Stage 2 - Street/Strip System
Vehicle Model	Mustang
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	150 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	3.25 in
Maximum Torque	494 ft-lb
Fuel Injector Type	60 lb/hr
Maximum Horsepower	529
Availability Note	Available to Order
Warranty	36 Months
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Ford Mustang 2009-2005
Finish	Black Powder Coated
Maximum Boost Pressure	9
Pulley Belt Width	6-Rib
Universal Or Specific Fit	Specific
