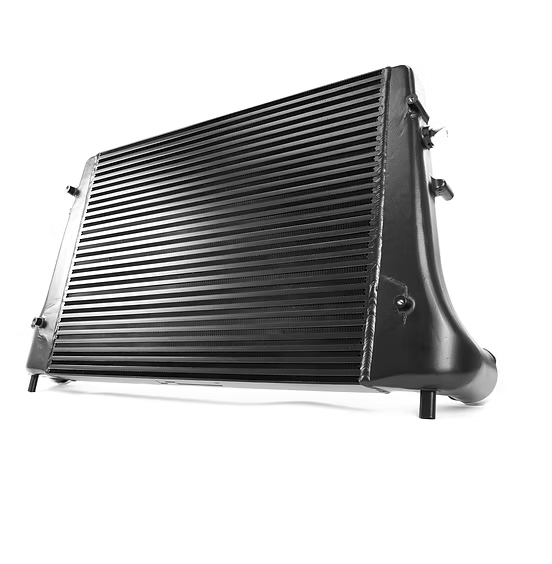

Intercooler / A5 Platform / EA113 2.0TSI

VWR141002

The factory intercooler on the 2.0 TSI EA113 & EA888.1 has proved to be unable to cope with the demands of higher power, hard driven cars, showing up as serious power losses during hard driving as air temperatures soar.

Our massive 'plate & bar' Intercooler System uses a huge 65mm core depth to give a huge volume increase over the factory cooler - making it the best performing intercooler upgrade on offer for the 2.0 TSI.

By consistently reducing intake air temperatures (IAT), heat soak is minimised delivering increased performance again and again. No need for the recovery cool-down times needed for the production intercooler.

Our development focussed on finding the ‘sweet spot’ of maximum IAT cooling versus minimum pressure loss. This has allowed us to achieve increased size without increased lag.

Increased 70mm inlet and outlet sizes allow for higher flow versus the 60mm factory outlets, with matching enlarged Boost Hoses provided with the intercooler kit. Includes silicone hose aluminium adaptor to step up the size.

MAXIMUM CORE SIZE

The massive 'plate & bar' intercooler unit features a 65mm high-speed core using extra tall internal tubes for maximum boost flow and a massive 96% increase in volume.

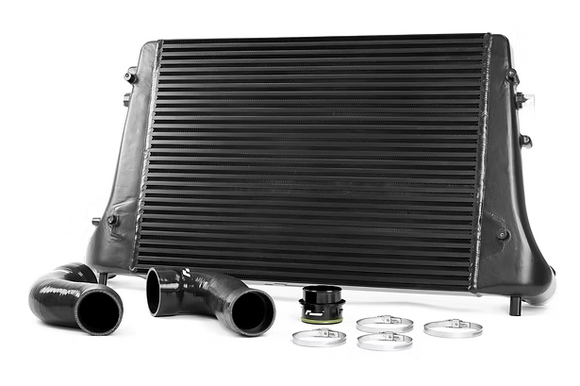

BOOST HOSES INCLUDED

Internally-wired OEM fitment 70mm boost hoses are included, multi-ply to resist heat deformation and burst pressure. Supplied with a step-up size adaptor.

FLOWED END TANKS

Cast construction end tanks for minimal turbulence and restriction use internal flow guides to divert airflow up and down across the entire core depth, with enlarged 70mm inlet & outlet.

Confirmed applications.

2.0 TSI  / EA113 & EA888.1 engines

VWR141002

>	VW Golf 5 GTI	2005-2008
>	VW Golf 5 GTI ED30/Pirelli	2006-2007
>	VW Golf 6 GTI	2009-2014
>	VW Golf 6 R	2009-2014
>	VW Scirocco	2008-2017
>	VW Scirocco R	2009-2017
>	VW Jetta / GLI 5	2005-2011
>	VW Jetta / GLI 6	2011-2018
>	VW Passat B6	2007-2010
>	VW Passat B7	2010-2012
>	Audi S3 8P	2006-2012
>	Audi A3 8P	2003-2012
>	Audi TT II 8J	2006-2014
>	Audi TTS II 8J	2008-2014
>	SEAT Leon II Cupra/R 1P	2006-2012
>	SEAT Leon II 1P	2005-2012
>	Skoda Octavia II 1Z	2004-2013
>	Skoda Octavia II vRS 1Z	2004-2013
