2.5" LIFT KIT - G WAGEN - W463A (G550)

EWO464LK20

Eurowise 2" Lift Kit for the 2019+ Mercedes G-class

Built from thick welded steel and machined billet aluminum, these kits are designed to last and will never wear out. This kit includes all the needed items to lift the G-class properly - not just your typical spring lift. You can install up to 33" tires with this lift without rubbing, depending on wheel offset.

No dash warning light after installation. Professional alignment with adaptive cruise control recommended after installation (tested with 33" tires). Larger sizes are possible, but will throw wheel speed sensor faults. Will work on G63 with AMG ride control or adaptive suspension.

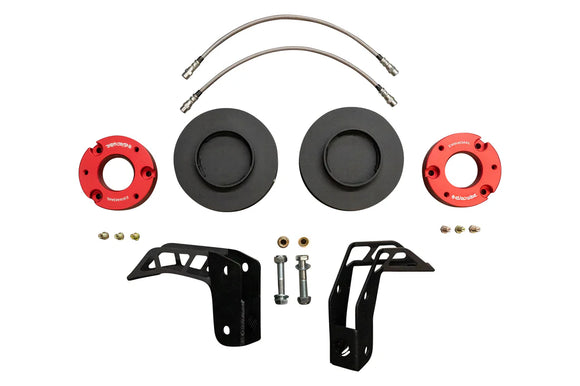

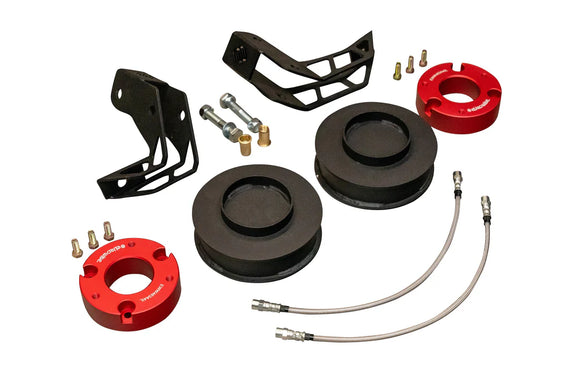

Product Includes:

(2) Rear Spring Spacers

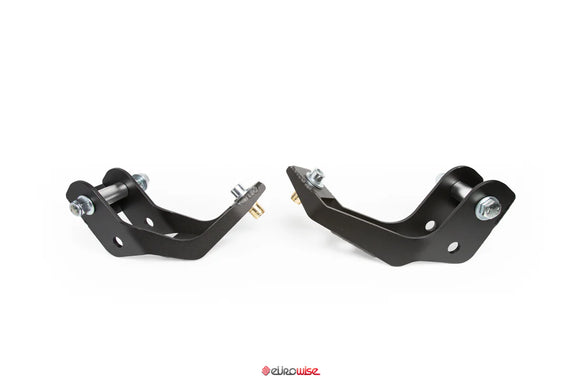

(2) Rear Shock Relocation Brackets w/ Hardware

(2) Front Upper Strut Drop Spacers w/ Hardware

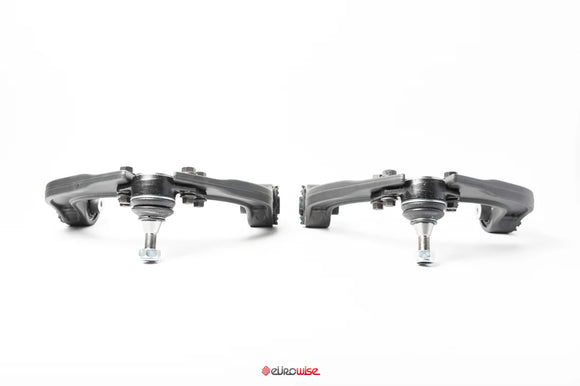

(2) Front Upper Control Arms

(2) Extended Rear Brake Lines

(2) Adjustable Front Level Sensor Links

Fitment:

2019+ Mercedes G550

2019+ Mercedes G63

NOTE:

When installing adjustable level sensor links you will need to dial in lengths using a scan tool. View "Live Data" and adjust front links until both read "0" when the vehicle is level and on the ground.

When installing taller than 33" tires, you may experience multiple warning codes due to oversized tires (active brake assist, blind spot monitoring, active cruise).
This does not affect drivability. We've tested with 33.5" tires without issues.

HELPFUL LINKS:

Installation Guide

Offroad Build Gallery

Install at your own discretion. Professional installation is strongly recommended. Eurowise is not responsible for any damage resulting from improper installation or misuse.
