Eventuri Carbon Duct Set - BMW E9X M3

BMW E9X M3 DUCTS

Prepreg Carbon Fiber Ducts

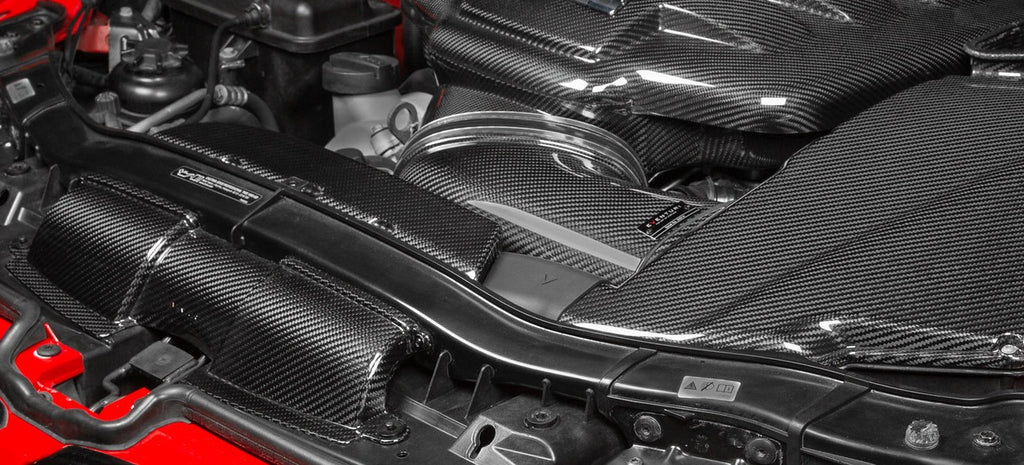

*Some images show the optional Carbon Plenum, Intake and Airbox Lid.

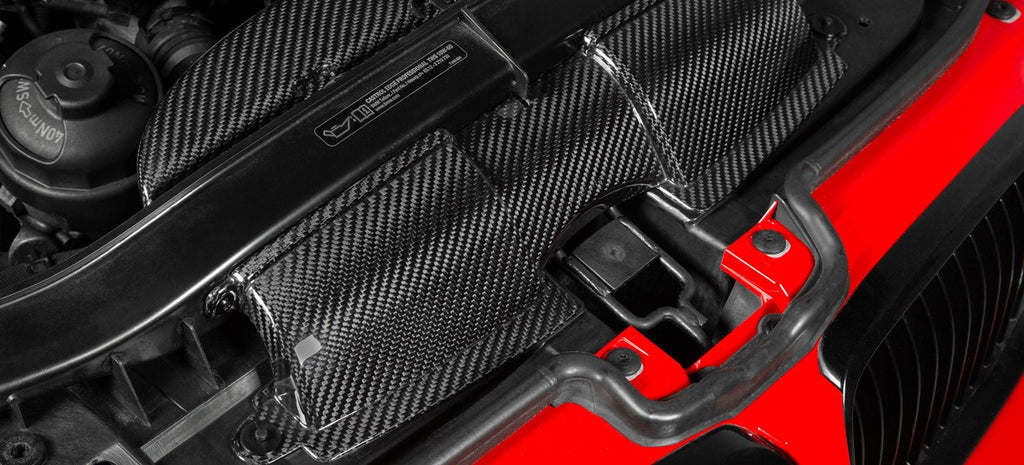

Our E9X M3 carbon ducts are a direct replacement for the OEM plastic ducts to bring that finishing touch to the engine bay. These ducts are made using prepreg carbon and match the rest of our E9X M3 line up for the ultimate OEM+ theme. We have also replaced the flexible joining piece between the ducts and the airbox with an EPDM coupler featuring our raised V logo. During development, consideration was given to add scoops to the front duct but after analysis we found there was no performance benefit due to the small opening between the ducts and the airbox so we opted not to add scoops. This also leaves the grill openings unobstructed for optimum flow to the radiator.

The Eventuri carbon ducts are available in both gloss and matte finish to match our plenum, intake and airbox lid.

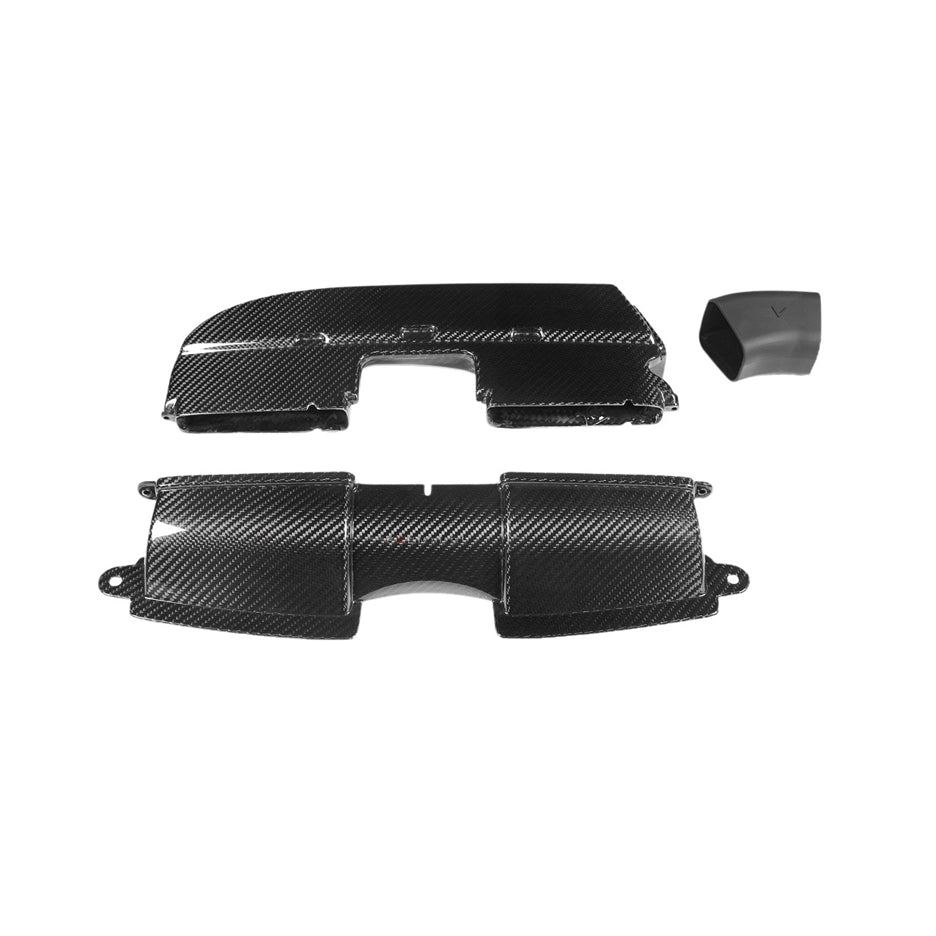

Each set consists of:

• Carbon Fiber Front Duct
• Carbon Fiber Rear Duct
• Custom EPDM Coupler

Part Numbers:

• EVE-E9X-CF-DCT : BMW E9X M3 Black Carbon Ducts Gloss
• EVE-E9X-CFM-DCT : BMW E9X M3 Black Carbon Ducts Matte
