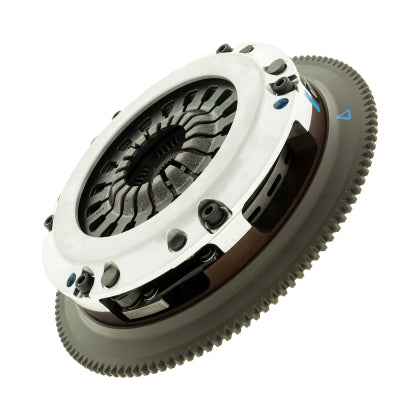

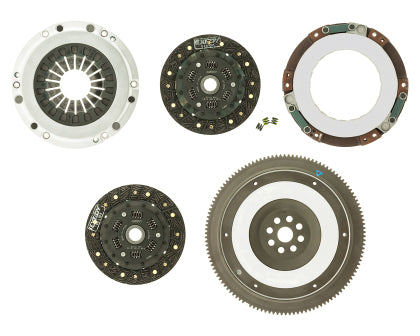

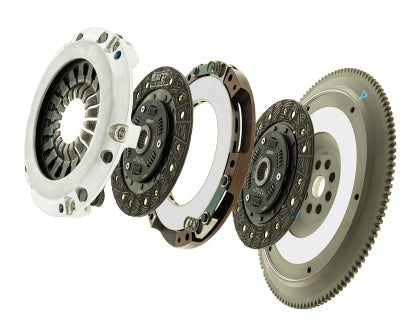

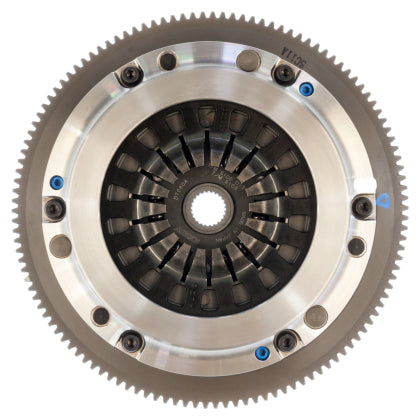

Exedy 1991-1996 Acura NSX V6 Hyper Twin Organic Clutch Strap Drive Type Sprung Center Disc

HMG12SD

For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street action as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use.

Features and Benefits

• SFI Certified

1999 Acura NSX Alex Zanardi Edition V6.3179cc Drivetrain::Clutch Kits - Multi
1999: Transmission Input Shaft Must be Changed to 91-96 Model
1991-1996 Acura NSX Base V6.2977cc Drivetrain::Clutch Kits - Multi
1991: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1992: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1993: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1994: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1995: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1996: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1997-2001 Acura NSX Base V6.3179cc Drivetrain::Clutch Kits - Multi
1997: Transmission Input Shaft Must be Changed to 91-96 Model
1998: Transmission Input Shaft Must be Changed to 91-96 Model
1999: Transmission Input Shaft Must be Changed to 91-96 Model
2000: Transmission Input Shaft Must be Changed to 91-96 Model
2001: Transmission Input Shaft Must be Changed to 91-96 Model
2004: Transmission Input Shaft Must be Changed to 91-96 Model
2005: Transmission Input Shaft Must be Changed to 91-96 Model
2004-2005 Acura NSX Base V6.3179cc Drivetrain::Clutch Kits - Multi
1997: Transmission Input Shaft Must be Changed to 91-96 Model
1998: Transmission Input Shaft Must be Changed to 91-96 Model
1999: Transmission Input Shaft Must be Changed to 91-96 Model
2000: Transmission Input Shaft Must be Changed to 91-96 Model
2001: Transmission Input Shaft Must be Changed to 91-96 Model
2004: Transmission Input Shaft Must be Changed to 91-96 Model
2005: Transmission Input Shaft Must be Changed to 91-96 Model
1995-1996 Acura NSX T V6.2977cc Drivetrain::Clutch Kits - Multi
1995: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1996: Twin; Organic; Sprung Center Disc; 200mm.; Pull Type; 24 Teeth/26mm Spline; [Available While Supplies Last] Clamp Load: 1765 lbs.~Clutch Torque: 596 ft./lbs.~Torque Capacity At Wheels: 340 ft./lbs. 24-Spline; 340 Torque Capacity @Wheels; Organic Twin-Disc, Flywheel Crank bolts required Part # 90011-PR7-000 (8pcs), Input shaft must be changed on transmission to 91-96 model
1997-2003 Acura NSX T V6.3179cc Drivetrain::Clutch Kits - Multi
1997: Transmission Input Shaft Must be Changed to 91-96 Model
1998: Transmission Input Shaft Must be Changed to 91-96 Model
1999: Transmission Input Shaft Must be Changed to 91-96 Model
2000: Transmission Input Shaft Must be Changed to 91-96 Model
2001: Transmission Input Shaft Must be Changed to 91-96 Model
2002: Transmission Input Shaft Must be Changed to 91-96 Model
2003: Transmission Input Shaft Must be Changed to 91-96 Model
