301418

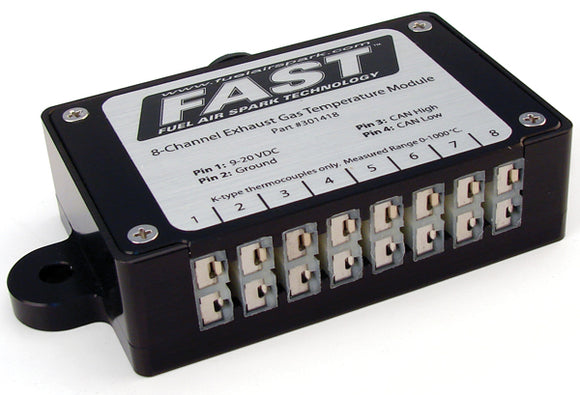

The XFI™ EGT (Exhaust Gas Temperature) Module from FAST™ allows XFI™ owners to monitor up to 8 EGT sensors without requiring the use of the 8 square auxiliary XFI™ inputs. The XFI™ EGT Module utilizes a small, thin cable to communicate through a high speed CAN (Controller Area Network) connection protocol at 500 kbps.
The Exhaust Gas Temperature (EGT) module measures and transmits data from k-type thermocouples with a range of 32*-1670* F (0*-910* C). Once transmitted, the data is available for viewing and logging through either the XFI™ or the FAST™ Dash Logger.
FAST™ Part # 301418 EGT Module includes*
- EGT Module
- Installation Manual
- Wiring Harness
*No fittings or thermocouplers are included. Part # 301405 Includes fittings and 8 thermocouplers or they can be purchased individually
