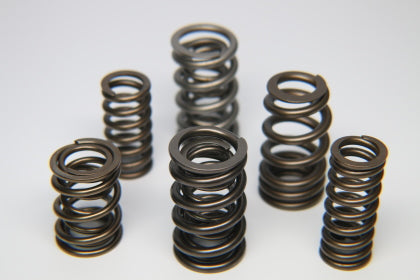

Ferrea VW VR6 2.8L 12V Dual Valve Spring - Single (Drop Ship Only)

S10062-1

Ferrea Valve Springs are developed from high strength alloys, including premium grade chrome silicon steel. These springs are manufactured with state-of-the-art equipment. Our springs are heat-treated and stress relieved, which dramatically increases the spring’s life.

The design and processes on these dual valve springs are optimized to reduce valvetrain harmonics and provide greater stability on high horsepower applications. We use high grade premium super-clean PAC alloy materials and maintain tight tolerances for those unique aftermarket cylinder heads.

Strict quality control procedures and cycle testing ensures consistency from batch to batch. Ferrea Valve Springs provide the stability needed for high lift, high rpm racing engines, while minimizing the load loss for today’s aggressive valvetrain combinations.


- Inner Spring OD 22.75mm
- Inner Spring ID 17.1mm
- Outer Spring OD 29.5mm
- Outer Spring ID 22.75mm
- Open Pressure 195lbs @ 22mm
- Max Lift 13mm
- Coil Bind 19mm
- Manufacturer Ferrea
- Valve Spring Type Dual
- Seat Pressure 95lbs @ 32mm
- Valve Spring Rate 254lbs/inch


This Spring requires Ferrea Titanium Retainer # E11039 and Ferrea Valve Locks #K10099



Replaces OEM Part #'s

078-109-623-B / 078109623 B / 078 109 623 B / 078109623B

021-109-633-B / 021109633 B / 021 109 633 B / 021109633B
