Fleece Performance 98-02 Dodge Ram w/ Cummins SureFlo Performance Sending Unit

FPE-SF-CUMM-9802

PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump.  Each of these has some pretty significant drawbacks including the ¼ tank issues that result in cavitation of the pump when you draw air into the fuel system.

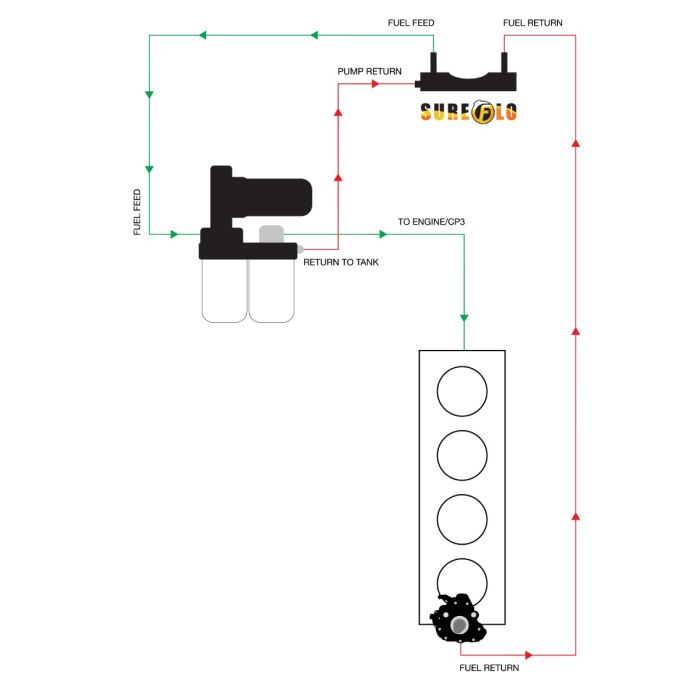

SOLUTION: SureFlo performance sending units are designed to work with aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available, and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded ¼ tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in at lower levels.

Our SureFlo performance sending units are also a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank.

Features

• OEM style fitment that requires no tank cutting or drilling
• New fuel level electronics and fuel float
• Heavy duty billet aluminum cap
• Universal -8 AN ports for professionally plumbing a custom fuel setup
• New O-ring or flange seal

*Protected under US Patent No. D910,083, Patents Pending, and US Trademark Reg. No. 6,878,858

Application Notes

*For MY 1998 trucks, this sending unit will work for both 12-valve and 24-valve models.  The stock sending unit in both cases will have a range between 20-220 ohms.

** For optimal performance, this product has been tested to work with aftermarket lift pumps including AirDog !!-5G with flow rates up to 220 GPH and Fass with flow rates up to 100 GPH.

• 1998 Dodge Ram 2500/3500 5.9L 12V Cummins
• 1998.5 Dodge Ram 2500/3500 5.9L VP 24V Cummins
• 1999 Dodge Ram 2500/3500 5.9L VP 24V Cummins
• 2000 Dodge Ram 2500/3500 5.9L VP 24V Cummins
• 2001 Dodge Ram 2500/3500 5.9L VP 24V Cummins
• 2002 Dodge Ram 2500/3500 5.9L VP 24V Cummins
