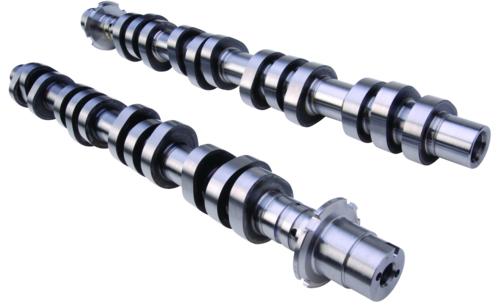

Ford Racing 2005-2010 Mustang GT High Lift Hot Rod Cam Set

M-6550-3V

• Give any 3 valve 4.6L or 5.4L a "lopey" idle reminiscent of 1960's muscle cars!
• Engineered for naturally aspirated and supercharged applications
• Excellent upgrade for the 2005-2010 Mustang GT 4.6L 3-Valve engine
• Increases lift from the stock 11 mm/0.433" to 12 mm/0.472"
• Intake / exhaust duration of 221 / 240 degrees (@ 0.050" lift), lobe separation of 110 degrees.
• Compatible with production valve springs, followers and lash adjusters up to 6800 rpm
• In order to achieve significant power gains, long tube headers should be used.
• 4.6L High Flow Intake M-9424-463V and Throttle Body M-9926-3V recommended.

• Works well with Ford Performance  M-9926-3V 62mm Throttle Body, 4.6L High Flow Intake M-9424-463V, and ported cylinder heads
• Approximately 50 hp gain with the stock intake manifold and Ford Performance M-6049-N3VOA/M-6050-N3VPA CNC heads at 6500 rpm. These cylinder heads are for reference only, and no longer produced by Ford Performance
• Custom Calibration required! Calibration not included! Recommended WOT cam timing values included in instructions.
