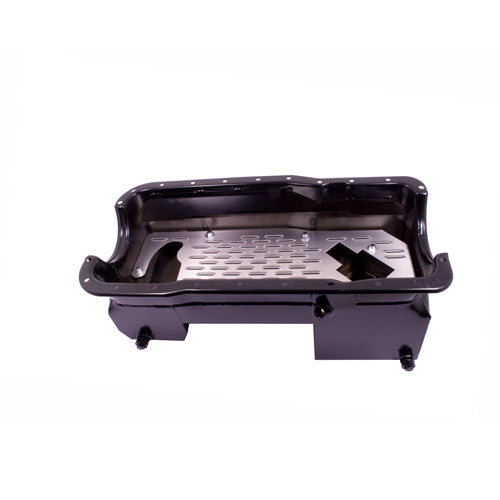

Ford Racing 351 Deep Rear Sump Oil Pan

M-6675-DRS351

Designed by Ford Performance for use on its crate engines, the M-6675-DRS351 oil pan is constructed to deliver power and durability.

Features include:

• Full length scraper to direct oil away from the crankshaft
• Full length bolt in louvered windage tray to control oil
• Baffling and trap doors in the sump to keep the pickup submerged during performance driving
• 7 quart capacity
• Rear sump depth is 9.1". Rear sump width is 8.7". Front sump depth is 6.7"
• Fits standard 351 Windsor block oil pan bolt pattern
• Includes 3/8" NPT bung to mount an oil temperature sending unit
• Includes 3/8" NPT access hole to adjust oil pump spring pressure
• Semi-gloss black powder coat finish
• Laser cut and TIG welded in precision fixtures for consistent OEM level fit
• Used on FRPP M-6007-Z427FRT  and M-6007-Z427ART Crate Engines
• Use pickup M-6622-DRS351
