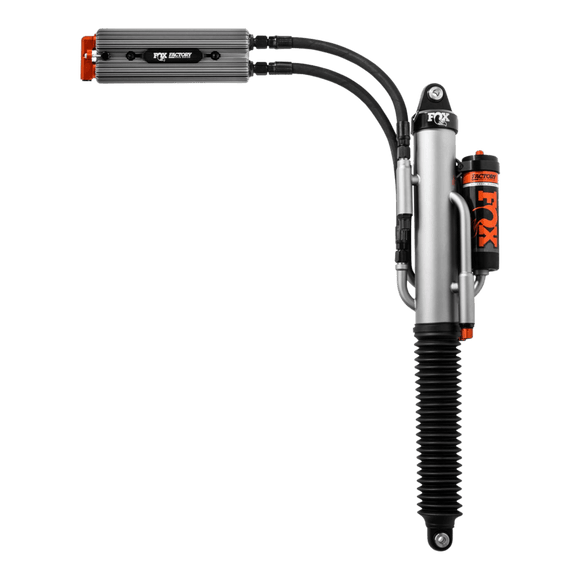

Fox Ford Raptor 3.0 Factory Series 12.27in External QAB P/B Reservoir Rear Shock Set - Blk

883-09-141

Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2). This kit delivers the next level of off-road performance without sacrificing every day ride quality.

883-09-141 Also Fits Year Make Model Drive Type Position Lift Height Price 2017 Ford F-150 Raptor All Rear 0-1 $3,699.95 2018 Ford F-150 Raptor All Rear 0-1 $3,699.95

PART NUMBER 883-09-141 FEATURES Performance Tuned For Vehicle Specific Application; Durable Zinc Plated Seamless Alloy Body; Quick Adjust Bypass Knobs For Easy Adjustments; External Reservoir System Dissipates Heat Fast SERIES Factory Race TRAVEL 12.27 REAR LIFT HEIGHT 0-1 BODY 3.0" steel body new, proprietary coating for improved durability RESERVOIR NEW, hard anodized impact extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge COMPONENTS Hard anodized, CNC-machined 6061-T6 billet aluminum SHAFT 7/8" 17-4 H900 hard chrome plated stainless steel PISTON Hard anodized 6061-T6 billet aluminum high flow race piston VALVING Specific for Gen 2 Raptor to maximize performance and comfort EXTENDED LENGTH 31.15 COMPRESSED LENGTH 18.88 TOP MOUNT Eyelet BOTTOM MOUNT Eyelet
