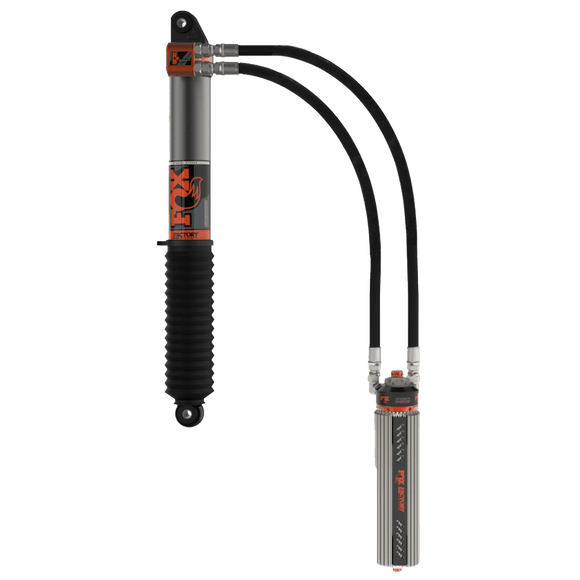

FOX 2019+ Chevrolet Silverado 1500 Race Series 3.0 Internal Bypass Reservoir Shocks Rear 2-3in Lift

883-26-105

FOX Factory Race Series 3.0 Internal Bypass shocks for the Chevrolet/GM 1500 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.

883-26-105 Also Fits Year Make Model Drive Type Position Lift Height Comments Price 2019 Chevrolet Silverado 1500 All Rear 2-3 Trail Boss Models Fit 0-1" Lift Only , Non-TB requires a minimum of 2” bump stop spacer and a 1” lift block $3,499.95 2020 Chevrolet Silverado 1500 All Rear 2-3 Trail Boss Models Fit 0-1" Lift Only , Non-TB requires a minimum of 2” bump stop spacer and a 1” lift block $3,499.95 2021 Chevrolet Silverado 1500 All Rear 2-3 Trail Boss Models Fit 0-1" Lift Only , Non-TB requires a minimum of 2” bump stop spacer and a 1” lift block $3,499.95 2022 Chevrolet Silverado 1500 All Rear 2-3 Trail Boss Models Fit 0-1" Lift Only , Non-TB requires a minimum of 2” bump stop spacer and a 1” lift block , Excludes ZR2 $3,499.95 Show More

PART NUMBER 883-26-105 FEATURES Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; Multiple Internal Damping Zones; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components SERIES Factory Race TRAVEL 10.32 REAR LIFT HEIGHT 2-3 BODY 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel BODY PLATING Hard-anodized for a durable finish RESERVOIR NEW! Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum SHAFT 7/8" hard chrome plated heat-treated alloy steel PISTON Race-developed high-flow piston design VALVING Patented, internal bypass design, application-specific valving to maximize performance SEALS Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions BEARINGS PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth EXTENDED LENGTH 27.73 COMPRESSED LENGTH 17.16 TOP MOUNT Eyelet BOTTOM MOUNT Eyelet FITMENT NOTES Trail Boss Models Fit 0-1" Lift Only | Non-TB requires a minimum of 2” bump stop spacer and a 1” lift block
