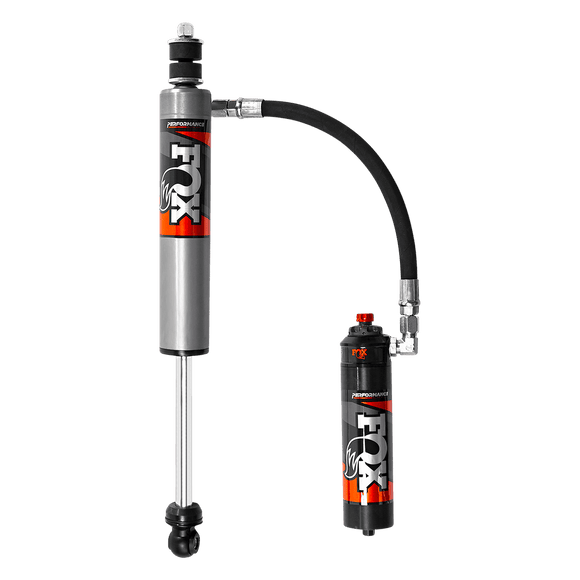

FOX 15-20 Ford F150 4WD Performance Elite 2.5 Series R/R DSC Coilover 0-2in Lift - Rear

883-26-114

FOX Performance Elite Series 2.5 shocks improve the stock 13th generation Ford F-150 platform by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation of your truck. Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity, remove dead space from the shock body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more travel, and consistent damping forces result. Each reservoir features a Dual Speed Compression (DSC) adjuster; strategically mounted to eliminate interference with aggressive tires at full lock. Quickly adapt your shocks for load, environment, and driving style using the DSC adjusters as the high-flow piston manages stability through all types of terrain. FOX shocks are designed and engineered to support the damping of your rig with the presumption that you’re engaged in various activities. Realize the potential of your F-150 on the next adventure. Performance Elite shocks provide the versatility required to navigate rough terrain and improve on-road manners while remaining comfortable and in control.

883-26-114 Also Fits Year Make Model Sub Model Drive Type Fuel Type Body Num Doors Type Position Lift Height Price 2015 Ford F-150 All All All All All Rear 0-2 $1,699.95 2016 Ford F-150 All All All All All Rear 0-2 $1,699.95 2017 Ford F-150 All All All All All Rear 0-2 $1,699.95 2018 Ford F-150 All All All All All Rear 0-2 $1,699.95 Show More

PART NUMBER 883-26-114 FEATURES 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster Application-specific springs 7/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal Rear shaft boot to protect against roost spray SERIES Performance Elite TRAVEL 10.98 REAR LIFT HEIGHT 0-2 EXTENDED LENGTH 28.38 COMPRESSED LENGTH 17.4 TOP MOUNT Eyelet BOTTOM MOUNT Eyelet
