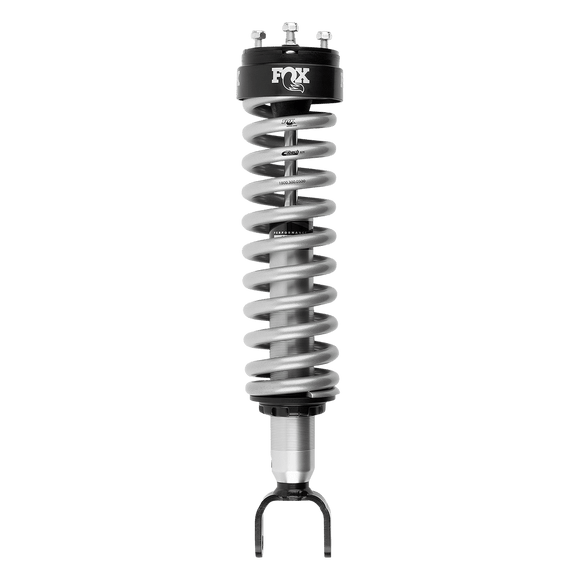

Fox 19+ Ram 1500 4WD 2.0 Performance Series IFP Coilover Shock (Alum) / 0-2in. Lift

985-02-136

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

985-02-136 Also Fits Year Make Model Drive Type Position Lift Height Comments Price 2019 Ram 1500 DT All Front 0-2 Does Not Fit Air Ride Models $599.95 2020 Ram 1500 DT All Front 0-2 Does Not Fit Air Ride Models $599.95 2021 Ram 1500 DT All Front 0-2 Excludes TRX and Air Ride Models $599.95 2022 Ram 1500 DT All Front 0-2 Excludes TRX and Air Ride Models $599.95 Show More

PART NUMBER 985-02-136 FEATURES Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components SERIES Performance TRAVEL 5.39 FRONT LIFT HEIGHT 0-2 BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time BODY PLATING Clear-anodized for a durable finish COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum SHAFT 5/8" hard chrome plated heat-treated alloy steel PISTON Race-developed high-flow piston design VALVING Application specific valving to maximize performance SEALS Redundant sealing pack system main seal, wiper seal, scraper seal BEARINGS Large diameter, heavy-duty spherical EXTENDED LENGTH 20.86 COMPRESSED LENGTH 15.46 TOP MOUNT TM BOTTOM MOUNT Clevis FITMENT NOTES Does Not Fit Air Ride Models
