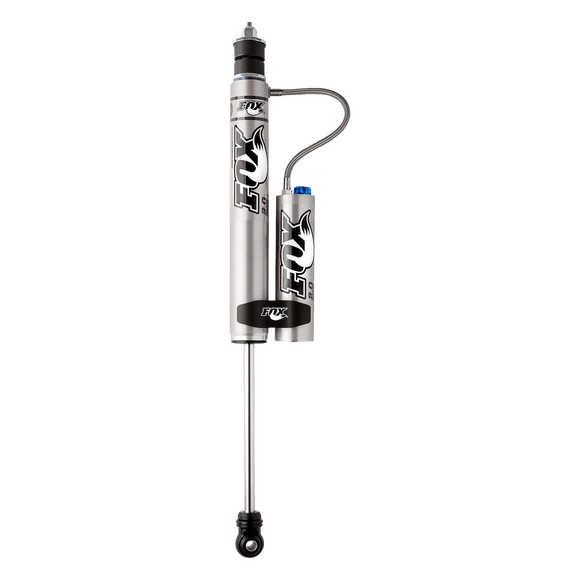

Fox 02+ Mercedes G-500 2.0 Performance Series 8.6in. Smooth Body R/R Rear Shock CD Adj. / 0-2in Lift

985-26-138

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

985-26-138 Also Fits Year Make Model Drive Type Position Lift Height Price 2002 Mercedes-Benz G500 All Rear 0-2 $469.95 2003 Mercedes-Benz G500 All Rear 0-2 $469.95 2004 Mercedes-Benz G500 All Rear 0-2 $469.95 2005 Mercedes-Benz G500 All Rear 0-2 $469.95 Show More

PART NUMBER 985-26-138 FEATURES Includes Aluminum Reservoir Clamp; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Fine Tune The Ride With 8 Clicks Of Adjustment SERIES Performance TRAVEL 8.62 REAR LIFT HEIGHT 0-2 BODY 2.0" Impact extruded 6061-T6 aluminum will resist rust over time BODY PLATING Clear-anodized for a durable finish COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum SHAFT 5/8" hard chrome plated heat-treated alloy steel PISTON Race-developed high-flow piston design VALVING Application specific valving to maximize performance SEALS Redundant sealing pack system main seal, wiper seal, scraper seal EXTENDED LENGTH 23.87 COMPRESSED LENGTH 15.25 TOP MOUNT SM1 BOTTOM MOUNT ES10
