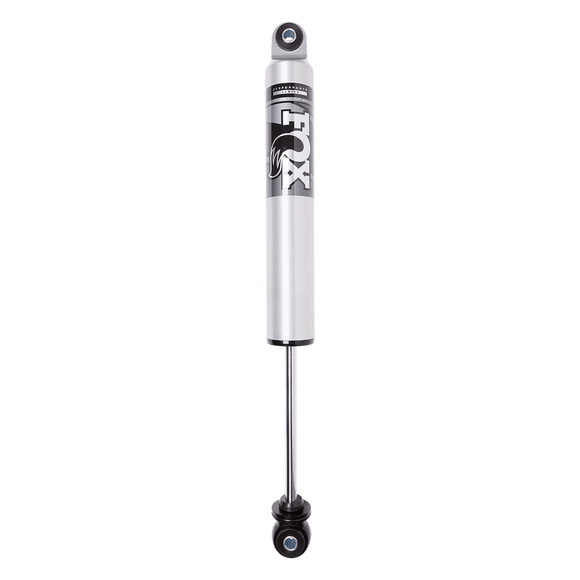

Fox 2017+ Ford F250 Super Duty 6-8in Lift Rear 2.5 Performance Series Smooth Body IFP HTO Shock

987-24-023

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

987-24-023 Also Fits Year Make Model Drive Type Position Lift Height Price 2017 Ford F-250 Super Duty 4WD Rear 6-8 $329.95 2018 Ford F-250 Super Duty 4WD Rear 6-8 $329.95 2019 Ford F-250 Super Duty 4WD Rear 6-8 $329.95 2020 Ford F-250 Super Duty 4WD Rear 6-8 $329.95 Show More

PART NUMBER 987-24-023 FEATURES 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston TRAVEL 13.69 REAR LIFT HEIGHT 6.8" EXTENDED LENGTH 35.88 COMPRESSED LENGTH 22.19 TOP MOUNT Eyelet BOTTOM MOUNT Eyelet FITMENT NOTES Lift: 6-8 inches
