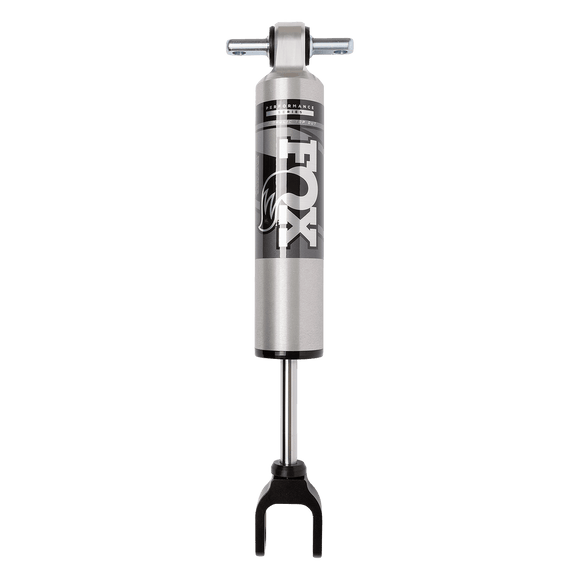

Fox 2020+ GM 2500/3500 Front 2.5 IFP 6.5 inch Lift HTO

987-24-024

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

987-24-024 Also Fits Year Make Model Drive Type Position Lift Height Comments Price 2020 Chevrolet Silverado 2500 HD All Front 6.5 For Use With Raised Torsion Systems That Require Lower Eyelet Mounting. Will Not Fit OE Mounts $329.95 2021 Chevrolet Silverado 2500 HD All Front 6.5 For Use With Raised Torsion Systems That Require Lower Eyelet Mounting. Will Not Fit OE Mounts $329.95 2022 Chevrolet Silverado 2500 HD All Front 6.5 For Use With Raised Torsion Systems That Require Lower Eyelet Mounting. Will Not Fit OE Mounts $329.95 2023 Chevrolet Silverado 2500 HD All Front 6.5 For Use With Raised Torsion Systems That Require Lower Eyelet Mounting. Will Not Fit OE Mounts $329.95 Show More

PART NUMBER 987-24-024 FEATURES 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston FRONT LIFT HEIGHT 6.5" TOP MOUNT Bar Pin BOTTOM MOUNT Clevis FITMENT NOTES Lift: 6.5 inches For Use With Raised Torsion Systems That Require Lower Eyelet Mounting. Will Not Fit OE Mounts;
