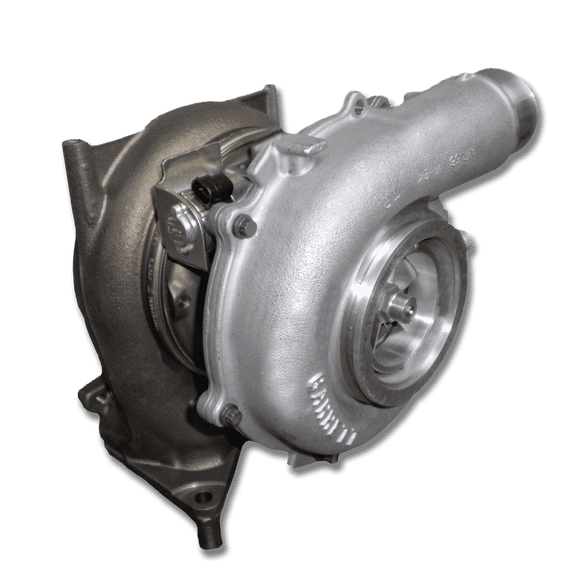

Garrett GT4094VA Turbo Kit - Chevy Duramax 6.6L 2004.5-2009 Stage 2 AVNT

773542-5001S

Product Description

Powermax™ Direct-Fit Performance Turbocharger Kits Are Engineered For Increased Engine Performance While Maintaining OEM Direct Fitment. With Professional Engine Calibration And Tuning, The Optimized Compressor Aero Will Increase Flow And Outperform The Stock Turbocharger.

Key Features

The Duramax Stage 1 Turbocharger Kit Features Garrett Patented Advanced Variable Nozzle Turbine Avnt™ Design For Increased Compressor And Turbine Flow. Utilizes Nine Movable Vanes Which Significantly Increase Turbine Efficiency And Improve Engine Performance From Idle Launch Through Peak Torque. Patented Integral Electro-Hydraulic Actuation And Proportional Solenoid Allow For Infinitely Variable Control. Larger Compressor Trim (52), Plus Larger GT40 Turbine Wheel And Vanes. Outline Interchangeable With The OE Turbo For Perfect Fit Each And Every Time.

Maximum Allowable Turbocharger Speed119KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

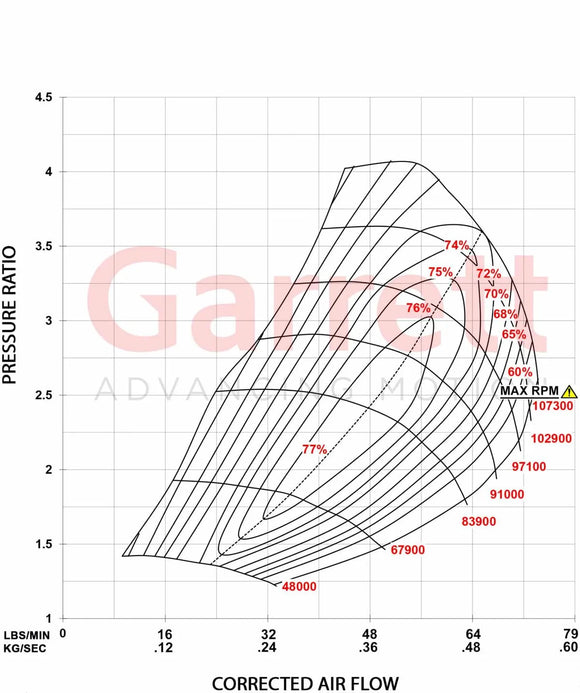

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
