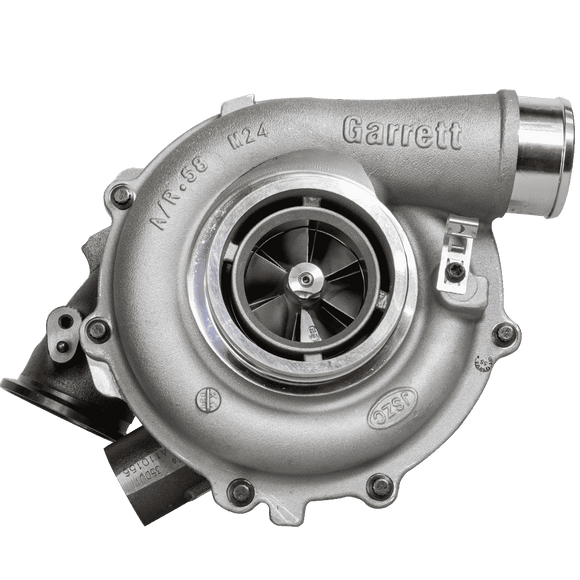

Garrett GT3788VA Turbo Kit - Ford Power Stroke 6.0L 2003 Stage 1 AVNT

777469-5002S

Product Description

Powermax™ Direct-Fit Performance Turbocharger Kits Are Engineered For Increased Engine Performance While Maintaining OEM Direct Fitment. With Professional Engine Calibration And Tuning, The Optimized Compressor Aero Will Increase Flow And Outperform The Stock Turbocharger.

Key Features

The GT3788Va Turbocharger Features The Garrett Patented Advanced Variable Nozzle. Turbine Avnt™ Design For Increased Compressor Flow And Boost Response. Utilizes Nine Movable Vanes Which Significantly Increase Turbine Efficiency And Improve Engine Performance From Idle Launch Through Peak Torque. Patented Integral Electro-Hydraulic Actuation And Proportional Solenoid For Infinitely Variable Control. Larger Compressor Wheel Over Stock Increases Maximum Power Range While Keeping Turbo Speeds Down For The Same Power Output. Outline Interchangeable For A Perfect Fit Each And Every Time.

Maximum Allowable Turbocharger Speed134KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

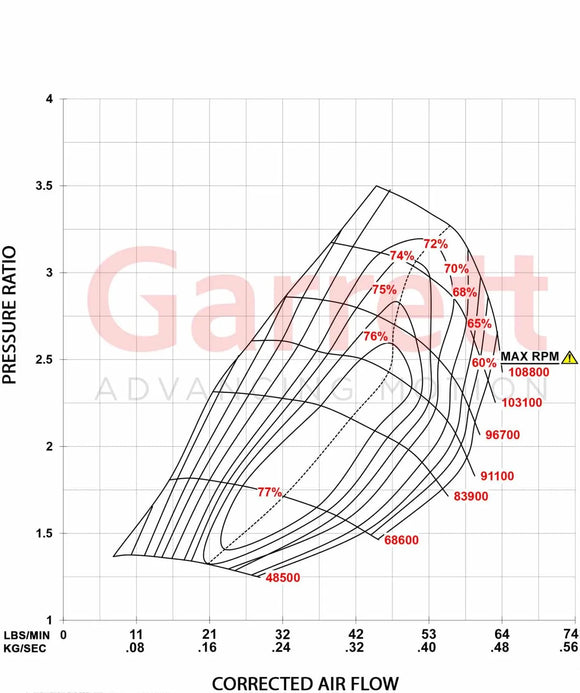

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
