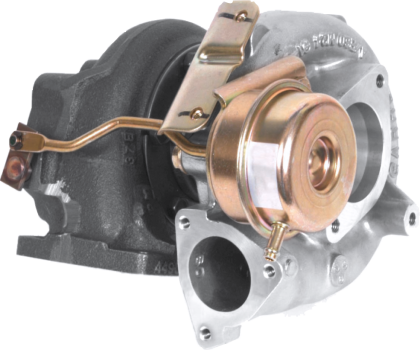

Garrett GT2560R Turbocharger (Small Frame)

836023-5004S

Original GT Series aerodynamics internally wastegated turbine housing sold as a complete turbo (includes turbine kit & actuator) ball bearing configuration with water cooled chra.

Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature Original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.

Features:

• Horsepower: 170 - 270
• Displacement: 1.4L - 2.2L
• Original GT Series Aerodynamics
• Internally wastegated turbine housing
• Sold as a complete turbo
• Includes turbine kit and actuator
• Ball bearing configuration
• Water cooled CHRA
• CHRA: 835995-0003
• Compressor:
  • Inducer: 46mm
  • Exducer: 60mm
  • Trim: 60
  • A/R: 0.80
• Turbine:
  • Incuder: 53mm
  • Exducer: 42mm
  • Trim: 62
  • A/R: 0.64

Technical Documents:

• View Compressor Maps
• View Exhaust Flow Chart
• View Flange Diagram
• View Speed Sensor Kit Installtion Instructions
