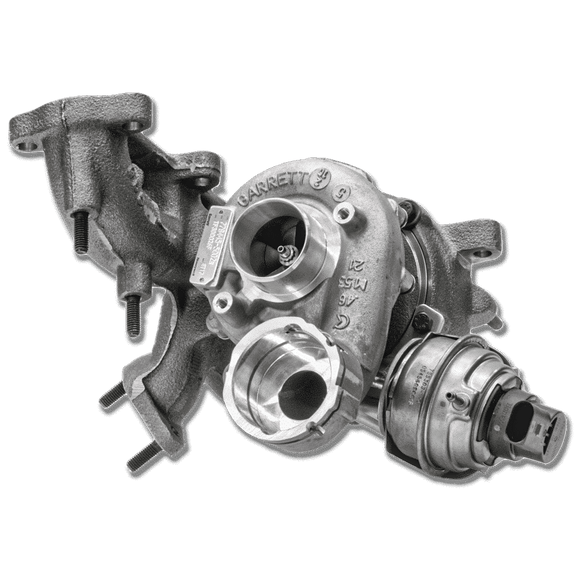

Garrett GT1749V VW 2.0L TDI Upgrade (BKD Engine) VNT Turbo Kit

838946-5001S

Product Description

Powermax™ Direct-Fit Performance Turbocharger Kits Are Engineered For Increased Engine Performance While Maintaining OEM Direct Fitment. With Professional Engine Calibration And Tuning, The Optimized Compressor Aero Will Increase Flow And Outperform The Stock Turbocharger.

Key Features

The Garrett GTa1749V Is A Performance Upgrade / Replacement Turbocharger Available To The Aftermarket For Volkswagen 2.0L Tdi Bkd/Bkp/Azv Engines. The GTa1749V Comes Equipped With A Larger Compressor Wheel For Increased Flow And Bolts Directly To The Stock Engine Manifold Flange. The Turbo Is Easy To Install And Suitable As A Performance Upgrade Or Replacement Turbocharger. The Garrett Vw Tdi Turbo Also Promotes A Longer Turbo And Engine Life Span And Increased Reliability By Lowering Exhaust Gas Temperatures. Includes The Latest Technology Tailored To Your Diesel Performance Needs: – Garrett Patented Variable Nozzle Turbine (Vnt™) Design – GT Wheel Aerodynamics. Replaces Vw Oe Part Numbers: 03G 253 010 J & 03G 253 010 J V100

Maximum Allowable Turbocharger Speed195KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

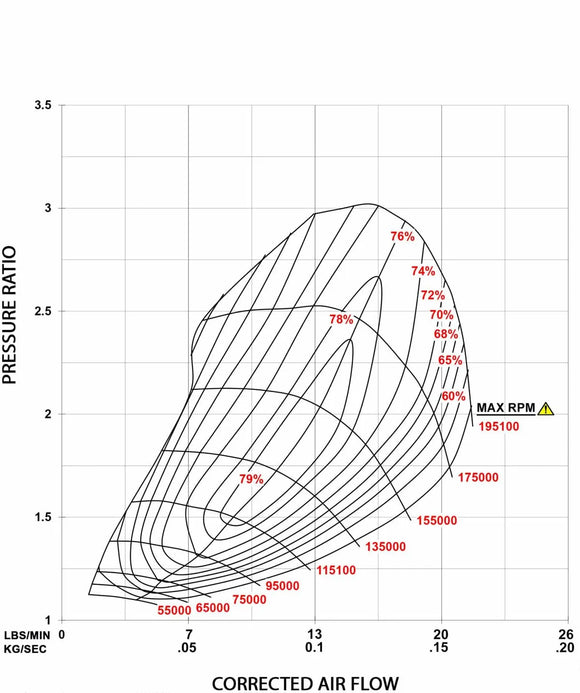

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
