GReddy 09+ Nissan GTR Special Aluminum Piping Kit for RX Intake Manifold 13522330

13920401

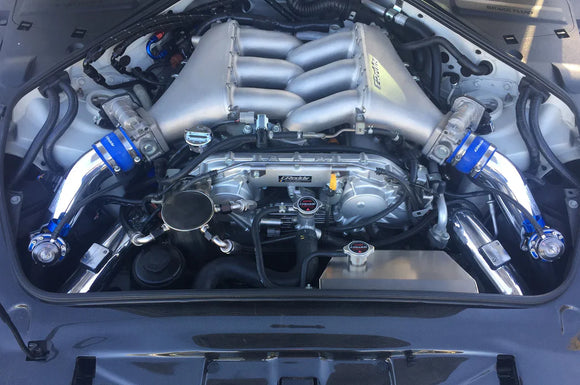

The GReddy R35RX Surge Tank Dedicated Piping Set is specifically designed for use when installing the GReddy RX surge tank on vehicles equipped with the GReddy TYPE29 intercooler. Due to the altered throttle position with the surge tank, the standard piping no longer aligns, making this kit essential. It provides the necessary piping to connect the intercooler outlet to the surge tank, ensuring a proper and secure fit.

Vehicle Fitment:
2009+ Nissan R35 GT-R

Specs:

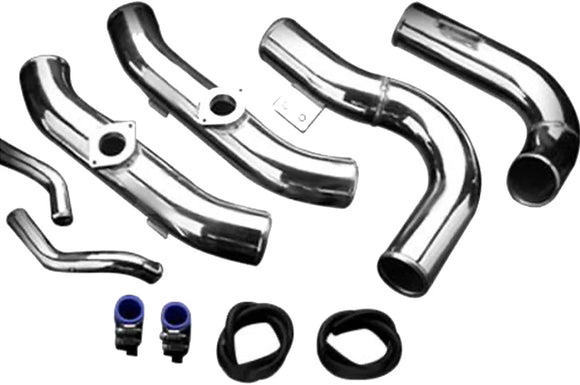

• Intake tube 70φ, aluminum 70φ buff finish 4 pieces
• Blow-off return tube 28φ, aluminum 28φ buff finish 2 pieces

Notes:
• When installing the GReddy RX surge tank on a vehicle equipped with GReddy intercooler TYPE29, this product is required because the throttle position changes, and piping is not possible.
• This is the piping from the intercooler outlet to the surge tank.
