GSC P-D Mitsubishi Evolution 1-9 4G63 Beehive Valve Springs & Ti Retainer Kit

GSC P-D Mitsubishi Evolution 1-9 4G63 Beehive Valve Springs & Ti Retainer Kit

$567.89 CAD

Shipping calculated at checkout

GSC Power Division SKU: gsc5040

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

5040

GSC5040 Beehive Valve Spring Kit with Ti Retainers for all 4G63s
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure, 11.20mm Lift Maximum Valve Lift (in)
Beehive 1.004 1.590 / 1.570 84 / 90 227lbs @ 1.149"
233lbs @ 1.129"		 0.506
  • Max RPM: 8,500 RPM
  • Max boost: 30 psi

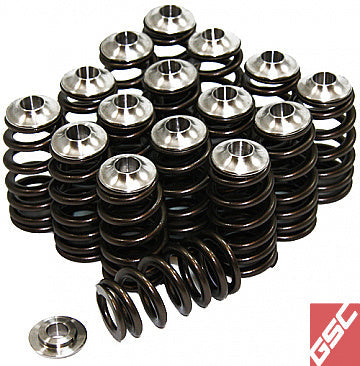

The GSC Power-Division Beehive Valve Spring Kit with Ti retainer for all 4G63s includes 16 titanium retainers and 16 beehive valve springs. This set can be used for EVO 1-7 & EVO 8/9 if you are looking to replace the OEM retainers. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
