GSC P-D Subaru FA20 WRX/BRZ/FRS Dual Cylindrical Valve Spring Kit

GSC P-D Subaru FA20 WRX/BRZ/FRS Dual Cylindrical Valve Spring Kit

$638.43 CAD

Shipping calculated at checkout

GSC Power Division SKU: gsc5256

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

5256

GSC5256 Dual Valve Spring Kit with Ti Retainer for the Subaru FA20
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure, 11.50mm lift Maximum Valve Lift (in)
Dual 0.782 1.299 / 1.303 102 / 100 257lbs @ 0.846" / 256lbs @ 0.850" 0.453
  • Max RPM: 9,500 RPM
  • Max boost: 50 psi

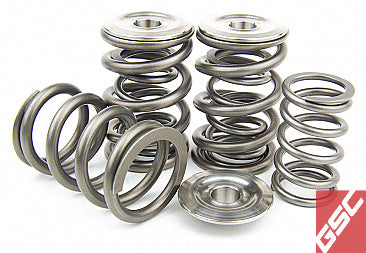

The GSC Power-Division Dual Valve Spring Kit with Titani9um Retainers for the Subaru 2015 WRX, BRZ and Scion FRS includes 16 titanium retainers, 16 dual valve spring sets, and 16 spring seats. This dual cylindrical set is made from the same high quality wire as our Beehive Kits and utilizes a Nano-peened finishing process to allow for the lowest possible fatigue loss rate.
