40-501
OVERVIEW

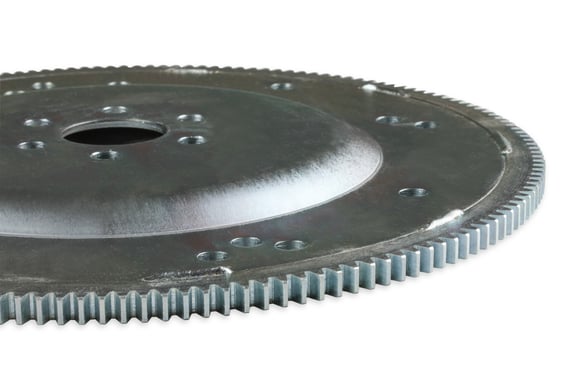

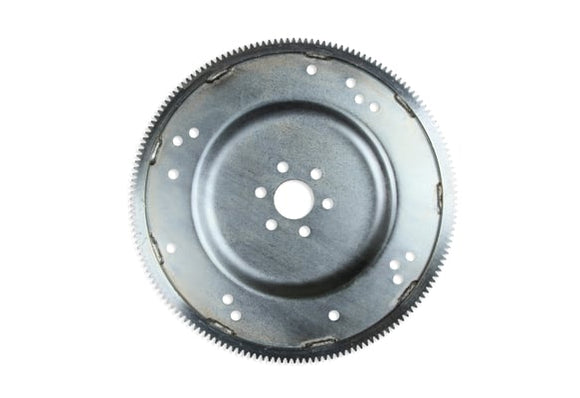

Hays SFI Approved heavy duty flexplates for are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the 4mm thick center plate utilized on a Hays flexplate handles the brute force. These flexplates are supplied with a precision double welded ring gear and feature multiple engine and transmission bolt patterns. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
Features:
- SFI-approved – legal for use in racing classes that require SFI certification
- Flexplate features a precision double welded ring gear
- Has 4mm thick center plate to resist cracking near crankshaft flange
- Zinc-dichromate plated to resist corrosion
- CAD designed to provide optimum performance and reliability
- Available in Internal or External balanced versions
- Applications offered for a wide variety of engine and transmission bolt patterns
About Hays
Looking for clutches, flywheels, flexplates, or torque converters? Shop the selection at Holley.com to find what you need.
SPECS
| # of Teeth | 164 |
|---|---|
| Application | Ford |
| Bolt Pattern | Ford 10-1/2" |
| Ford 11-7/16" | |
| GM 10-3/4" | |
| GM 11-1/2" | |
| Brand | Hays |
| Centerplate Thickness | 4 mm |
| Clearance Category | Transmission and Drivetrain |
| Discount Percentage | Over 75% |
| Emission Code | 5 |
| Engine | Ford Small Block |
| Engine Balance | Internal |
| Finish | Silver |
| Material | Steel |
| Product Type | Flexplates |
| Sale Category | Transmission and Drivetrain |
| SFI Approved | Yes |
| SFI Certification | 29.1 |
| Warranty | 90 Day |
| UPC | 090127062296 |
| Part Number | 40-501 |
