82-105
OVERVIEW

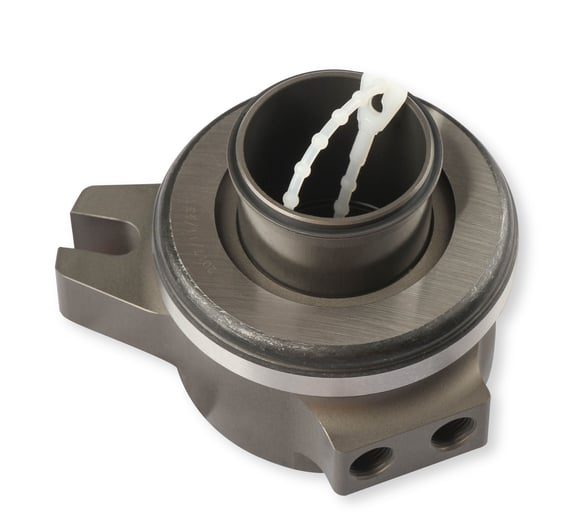

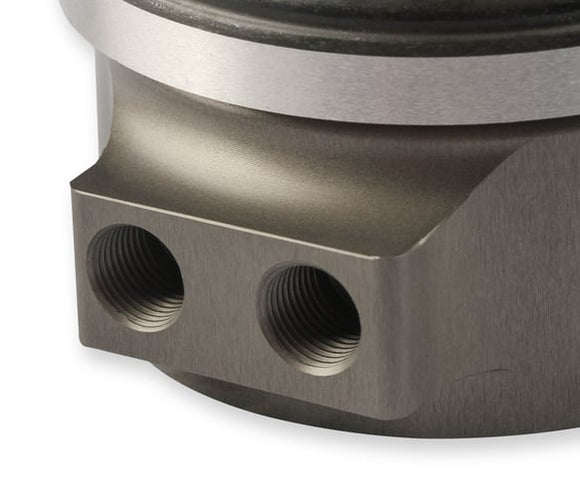

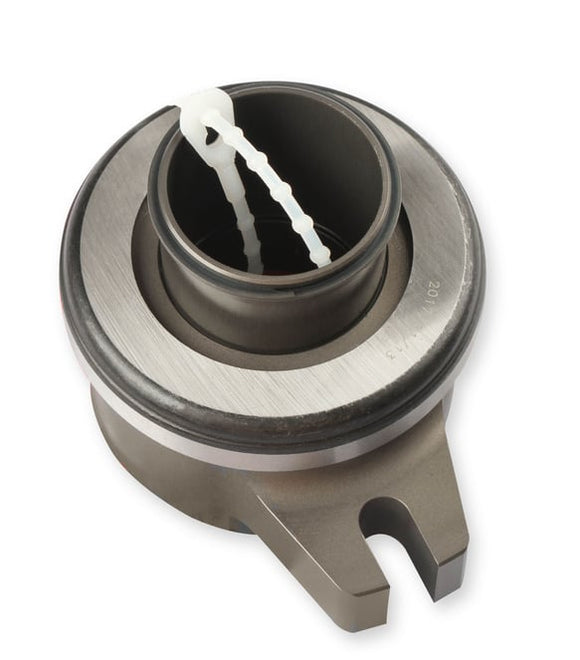

Hays hydraulic release bearings offer an easy method of setting up a hydraulic clutch release system in T-56 and TR6060 6-speed transmissions. Our kits are ideal for applications where a late model manual transmission is being integrated into an early vehicle not originally hydraulic equipped or as an upgrade to your factory hydraulic equipped vehicle. They feature full adjustability, providing an easy setup with any single or dual disc clutch along with offering easy pedal effort. Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage along with a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve. The sealed bearing snaps in place and is easily serviceable.
Features:
- Designed to fit Tremec T-56 and TR6060 manual transmissions
- Offers easy way to add easy effort hydraulic clutch actuation
- Works with single or dual disc clutches
- Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage

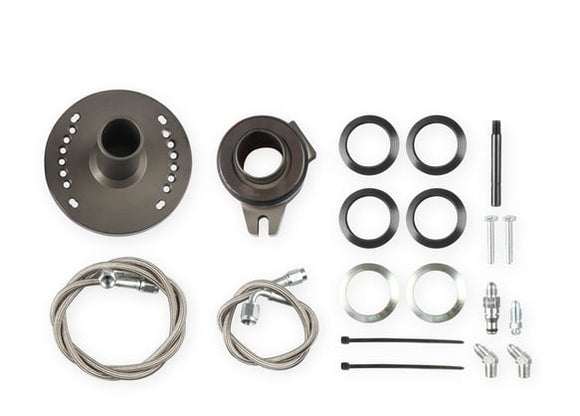

- Kits include bearing assembly, mounting hardware, adjustment shims plus -3AN bleed and feed lines
About Hays
Looking for clutches, flywheels, flexplates, or torque converters? Shop the selection at Holley.com to find what you need.
SPECS
| Bearing Style | Hydraulic |
|---|---|
| Bleed Line Included | Yes |
| Bleed Line Length (inches) | 18 |
| Brand | Hays |
| Clearance Category | Transmission and Drivetrain |
| Discount Percentage | Over 75% |
| Emission Code | 5 |
| Feed Line Included | Yes |
| Feed Line Length (inches) | 36 |
| Product Type | Hydraulic Release Bearing Kit |
| Sale Category | Transmission and Drivetrain |
| Warranty | Limited 90 Day Warranty |
| UPC | 090127055953 |
| Part Number | 82-105 |
