85-102
GM 10.5 in. Clutch Kit, Street, Diaphragm, 1-1/8 in., 26-Spline
OVERVIEW

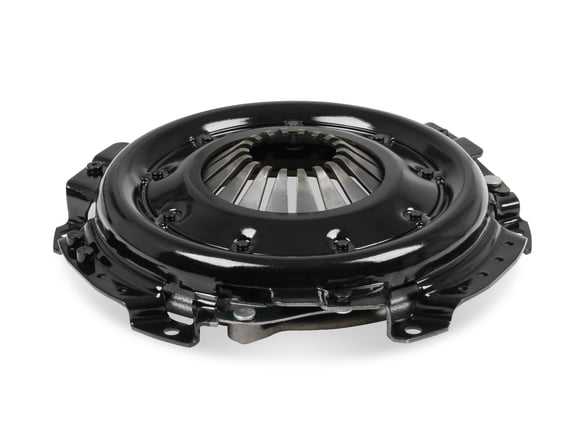

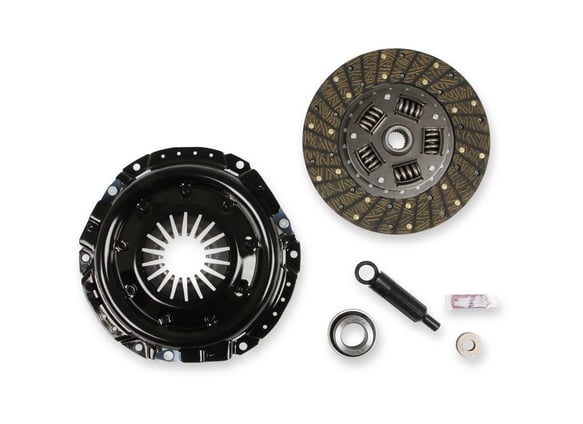

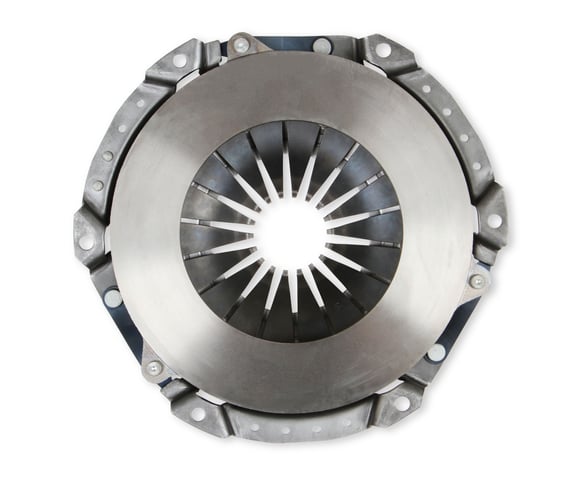

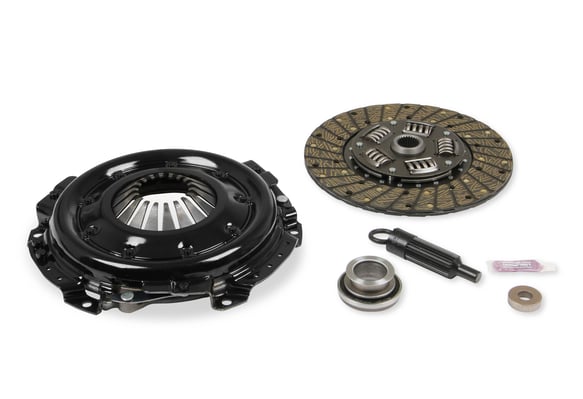

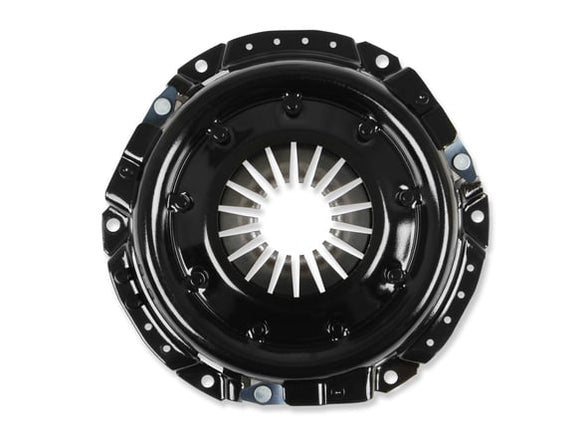

Hays street clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This kit fits Buick, Chevy and Pontiac applications with 10.5 in clutch and 1-1/8 in 26 spline input shaft. The pressure plate is diaphragm style, clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool.
Features:
- 10.5 In Diaphragm
- Organic Sprung Hub Disk
- 1-1/8 In 26 Spline
- Throw Out Bearing & Allignment Tool Included
- Fits Buick, Chevy, Pontiac
About Hays
Looking for clutches, flywheels, flexplates, or torque converters? Shop the selection at Holley.com to find what you need.
SPECS
| Alignment Tool Included | Yes |
|---|---|
| Application | GM |
| Brand | Hays |
| Disc Diameter | 10.5 |
| Disc Material | Organic |
| Disc Style | Spring Hub |
| Emission Code | 5 |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| Max Horsepower Rating | 442 |
| Max Torque Rating (ft.-lbs.) | 422 |
| Pressure Plate Style | Diaphragm |
| Product Type | Clutch Kits |
| Throwout Bearing I.D. (inches) | 1.380 |
| Throwout Bearing Included | Yes |
| Warranty | Limited 90 Day Warranty |
| UPC | 084041851029 |
| Part Number | 85-102 |
EMISSIONS
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
