91D-3000
1994-01 Dodge Ram 2500 & 3500 5.9L Cummins Diesel, 13 in. diameter, 10-spline
OVERVIEW

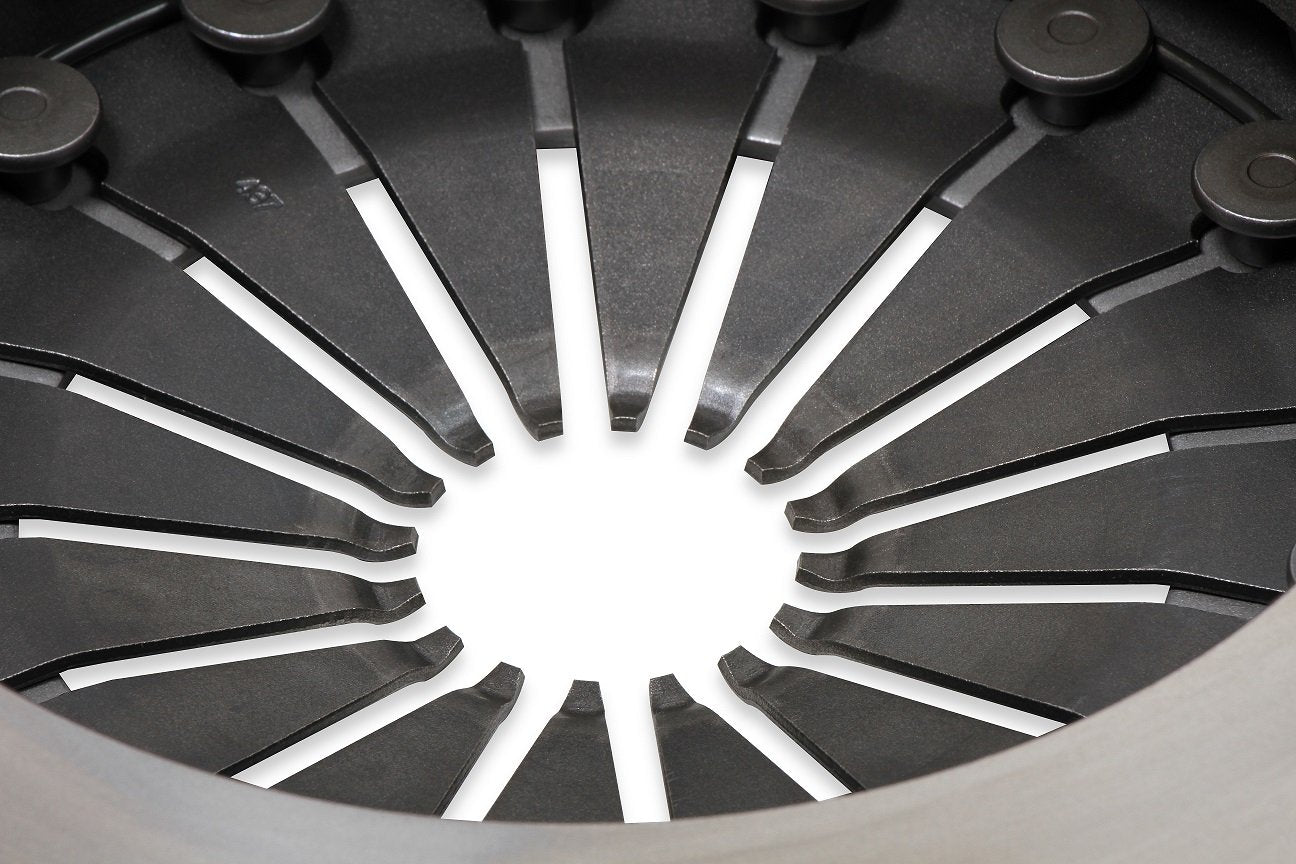

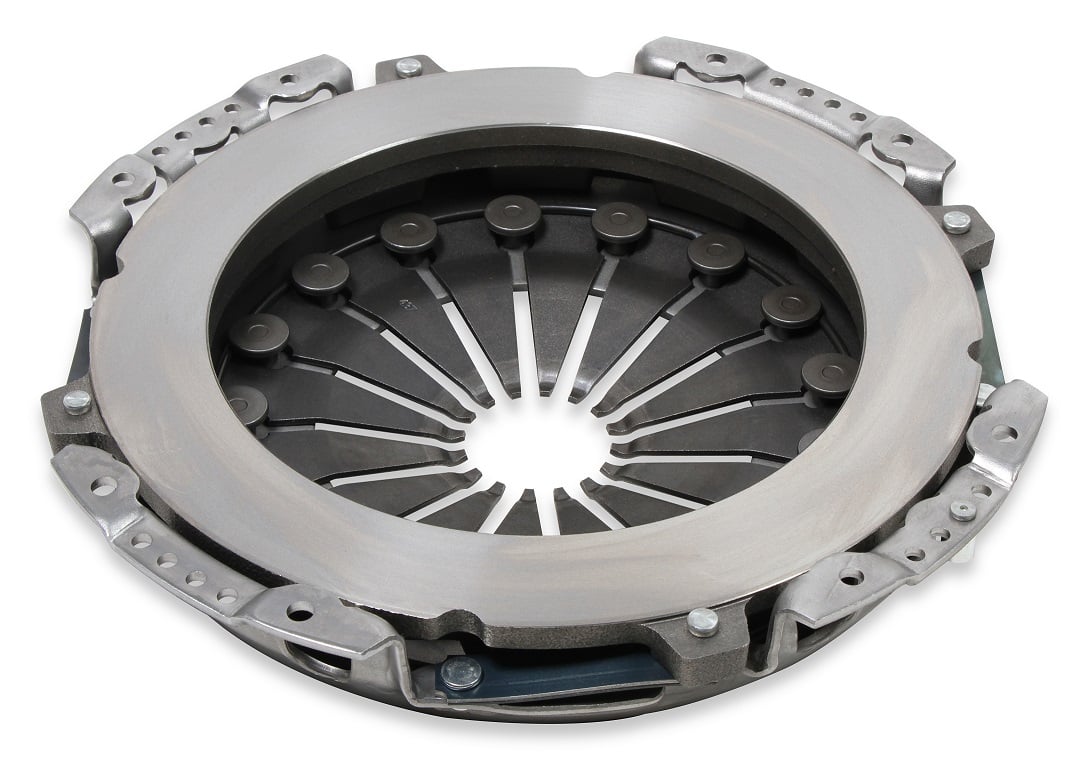

The Hays Diesel 650 clutch kits are an excellent upgrade from your stock clutch and designed handle Diesel engines with up to 650 ft. lbs. torque. It is a great clutch where drivability is the most important factor along with a stock pedal feel. Kit features a matched pressure plate and a heavy duty, high torque steel back clutch disc. This riveted clutch disc with advanced steel back friction material provides additional clamping force and superior strength. A reinforced steel backing allows for better heat dissipation delivering extended wear and quick recovery. The steel back facings are riveted to a marcel fin disc design which allows for smooth and positive engagement for street, towing, or heavy hauling applications. It offers up to 30% greater clamping force than a stock clutch allowing you to put more power to the ground and top quality materials allow for smooth, no-chatter engagement. Remember, Run with the Winners---Run with Hays!
Features:
- Excellent replacement for stock clutch for torque levels up to 650 lbs. ft.
- Great drivability along with stock pedal feel
- Upgraded clutch materials offers up to 30% more clamping pressure than stock OE clutch
- Features a matched pressure plate and a heavy duty, high torque steel back clutch disc
- Smooth, chatter-free operation using top quality organic composite friction surface material

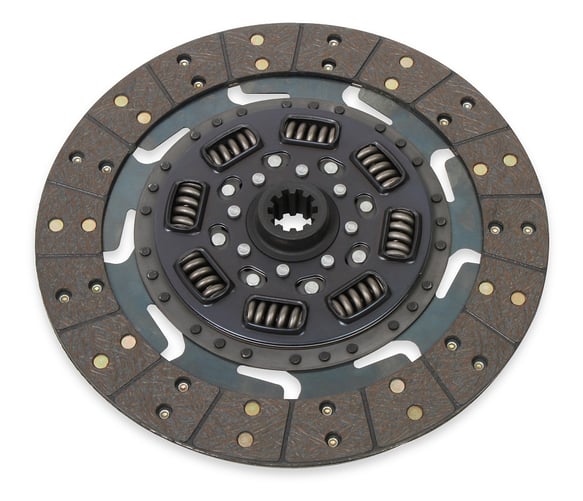

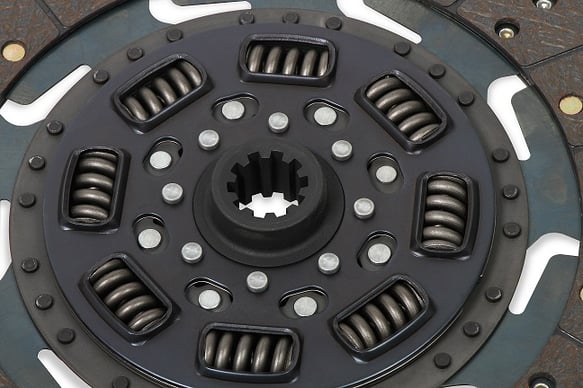

- Riveted clutch disc with advanced steel back friction material provides additional clamping force and superior strength

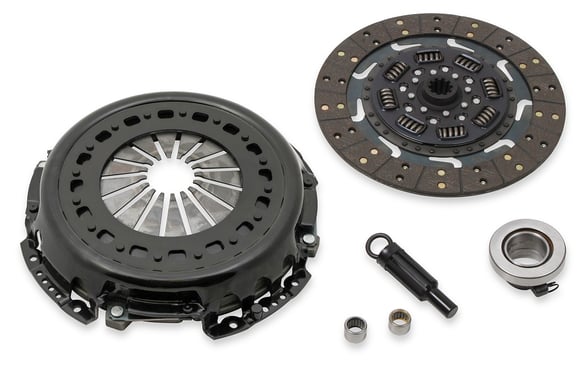

- Kits come complete with pressure plate, clutch disc, throwout bearing, alignment tool, and instructions
About Hays
Looking for clutches, flywheels, flexplates, or torque converters? Shop the selection at Holley.com to find what you need.
SPECS
| Alignment Tool Included | Yes |
|---|---|
| Application | Dodge |
| Brand | Hays |
| Disc Diameter | 13 |
| Disc Material | Organic |
| Disc Style | Spring Hub |
| Emission Code | 5 |
| Input Shaft Diameter | 1-1/4 in. |
| Input Spline | 10 |
| Pressure Plate Style | Diaphragm |
| Product Type | Clutch Kits |
| Throwout Bearing I.D. (inches) | 1.732 |
| Throwout Bearing Included | Yes |
| Warranty | Limited 90 Day Warranty |
| UPC | 090127022122 |
| Part Number | 91D-3000 |
