92-1100
1955-1985 GM L6/V6/V8 - 10.5 in. 26-Spline Sintered Metallic Disc with Diaphragm Pressure Plate
OVERVIEW

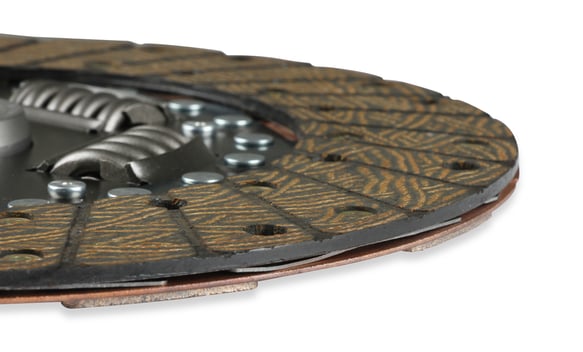

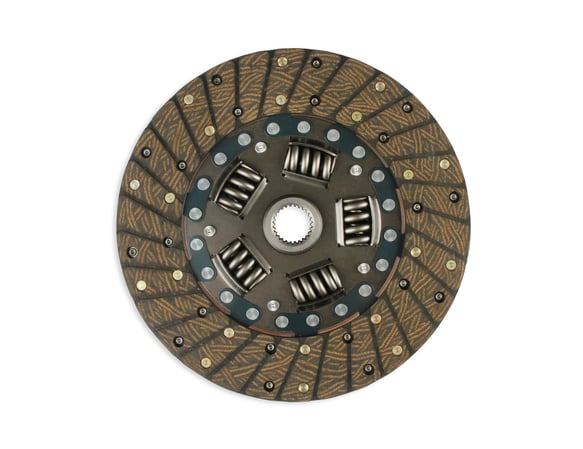

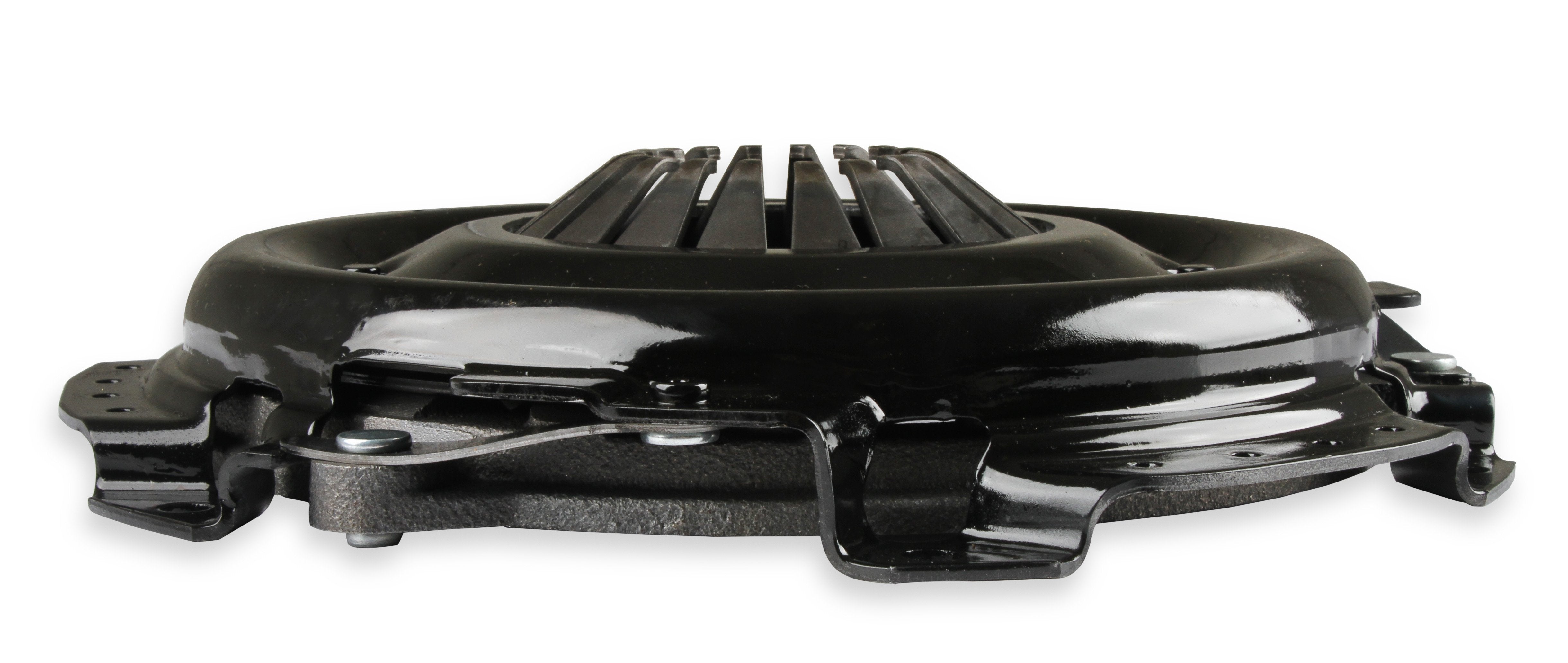

Hays Street 650 clutch kits are designed handle highly modified engines up to 650 naturally aspirated horsepower (600HP for forced induction & nitrous combinations). Our newest 26-spline versions are designed to work in conjunction with a modern 5-speed or 6-speed transmission swap. These are true street/strip clutches for spirited high performance driving or frequent track use. The high performance dual friction disc utilized in the Street 650 has an upgraded spring hub with heavy-duty damper springs designed to handle greater shock loads versus a standard damper spring. Our disc features a sintered metallic friction surface and an organic friction surface. This disc does a great job at dissipating heat and fighting the slippage found in ordinary discs along with providing the smooth engagement characteristics of a street-style clutch. We also provide an upgraded heavy-duty pressure plate to round out this performance clutch. The Street 650 is a great choice if you visit the track often.
Features:
- Includes 26-spline clutch disc for use with most 5-speed and 6-speed conversions
- Designed for power levels up to 650 naturally aspirated horsepower (600 HP for forced induction/nitrous)
- True “Street/Strip” clutch kit for spirited street driving and frequent track use
- Upgraded damper springs gives up to 30% more clamping pressure than stock OE clutch
- Dual friction disc offers the best of both worlds, smooth engagement and excellent holding capacity
- Upgraded heavy-duty spring hub handles greater shock load over standard disc springs

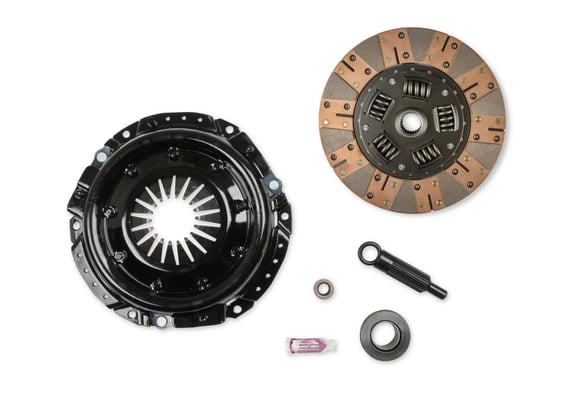

- All Street 650 clutch kits come complete with pressure plate, disc, throwout bearing, and alignment tool
About Hays
Looking for clutches, flywheels, flexplates, or torque converters? Shop the selection at Holley.com to find what you need.
SPECS
| Alignment Tool Included | Yes |
|---|---|
| Application | GM |
| Brand | Hays |
| Color | Black |
| Disc Diameter | 10.5 |
| Disc Material | Sintered Metallic |
| Disc Style | Spring Hub |
| Emission Code | 5 |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| Max Horsepower Rating | 650 |
| Pilot Bushing Included | No |
| Pressure Plate Style | Diaphragm |
| Product Type | Clutch Kits |
| Throwout Bearing I.D. (inches) | 1.380 |
| Throwout Bearing Included | Yes |
| Warranty | Limited 90 Day Warranty |
| UPC | 090127065204 |
| Part Number | 92-1100 |
