93-1003
OVERVIEW

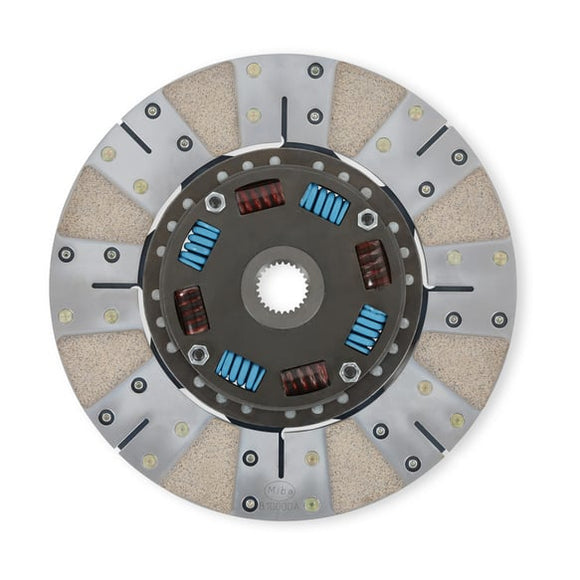

This Hot Street™ Clutch kit fits 1986-1993 small block Chevrolet externally balanced engines. It offers ultimate Street/Strip performance through matched components. A 10.5-inch metallic disc with a 6-spring helix sprung hub provides the superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a billet steel flywheel. These matched components provide the peace of mind purchase you've come to expect over the years from Hays.
Features:
- 10.5-inch single clutch disc with 1-1/8-inch x 26 spline for external balance SBC engines

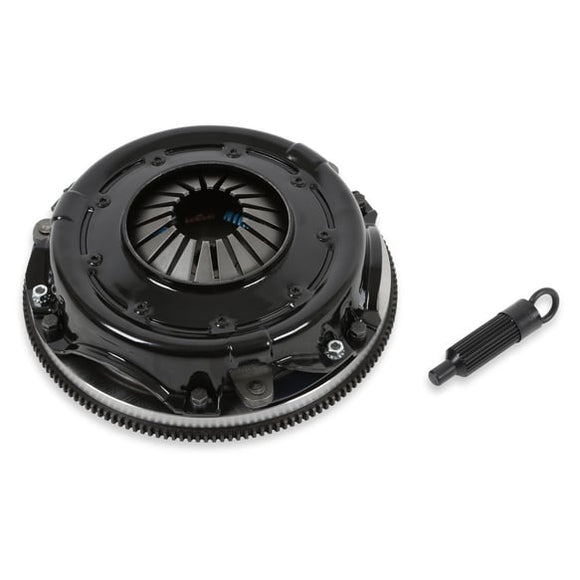

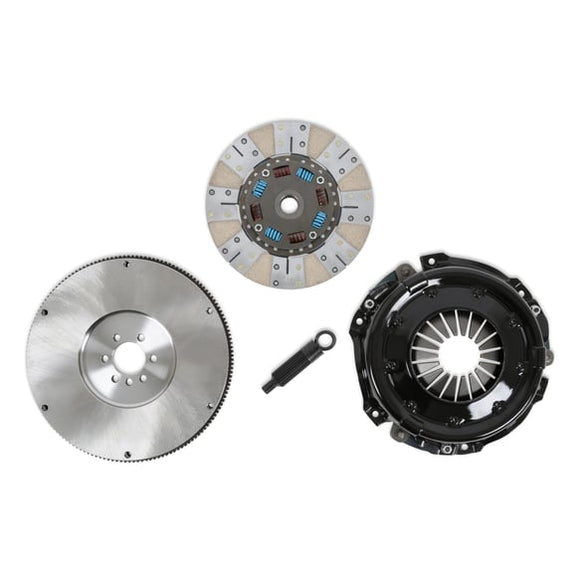

- Kit includes Billet steel flywheel, pressure plate, metallic disk, pressure plate bolts, dowels and alignment tool
- Street/Strip clutch kit provides excellent holding strength with a smooth daily driver pedal feel
- Designed for power levels up to 550 naturally aspirated horsepower (500 hp for forced induction/nitrous)
About Hays
Looking for clutches, flywheels, flexplates, or torque converters? Shop the selection at Holley.com to find what you need.
SPECS
| # of Teeth | 153 |
|---|---|
| Alignment Tool Included | Yes |
| Application | GM |
| Brand | Hays |
| Disc Diameter | 10.5 |
| Disc Style | Sprung Hub |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Engine Balance | External |
| Flywheel Included | Yes |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| Max Horsepower | 550 |
| Pilot Bushing Included | No |
| Pressure Plate Style | Diaphragm |
| Product Type | Clutch Kits |
| Throwout Bearing Included | No |
| UPC | 090127142653 |
| Part Number | 93-1003 |
