【Concept and Features】
- HKS provides an easy solution of a single turbine set up kit for GTIII-4R turbo.
- This kit may require modification or additional fabrication of parts such as intake pipes.

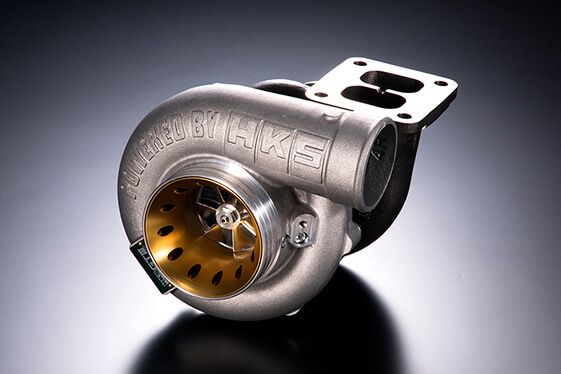

- This kit doesn’t include turbocharger assembly.
- HKS is setting a great value set up kit with GTIII-4R. (Code No. 14020-AZ003)

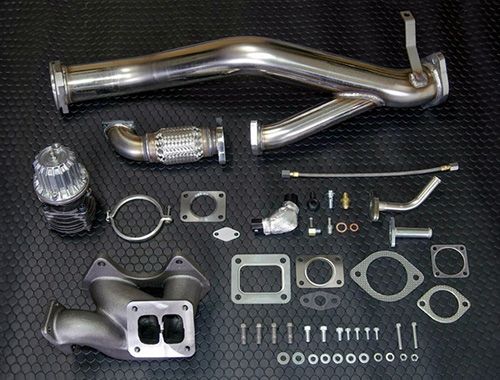

【Kit Includes】
HKS cast Exhaust Manifold, HKS Special Wastegate (φ60), Wastegate return pipe, oil inlet and outlet pipe, flange, gasket, bolts and nuts etc.

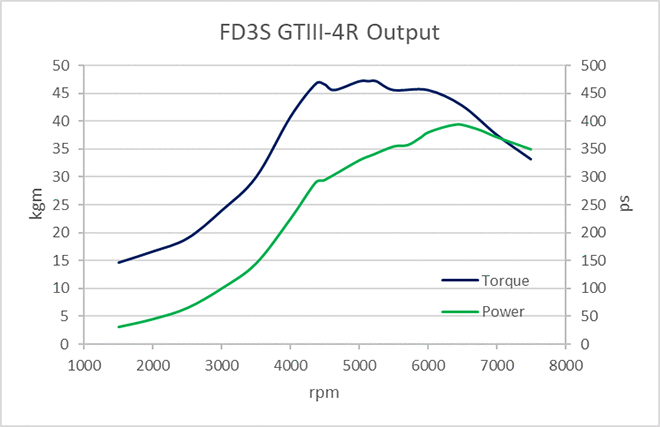

* The displayed power and torque are the values measured by our chassis dyno and may vary depending on the measurement equipment and individual vehicle differences.
| Test Vehicle | |
| Engine | Stock |
| T/M | Stock |
| Intake | HKS turbine kit suction SPF |
| Cooling | HKS R type Intercooler V mount, HKS oil cooler, Aluminum radiator |
| ECU | Stock ECU＆F-CON V Pro3.4・A/F Knock Amp.・EVC6-IR2.4 (108kPa) |
| Exhaust | Sports catalyzer |
| Vehicle | Model | Engine | Model Year | Type | Flange Size | Wastegate Type | Code No. | Remarks |
|---|---|---|---|---|---|---|---|---|
| RX-7 | FD3S | 13B-REW | 96/12 -02/08 | SPECIAL SET UP KIT | T4 | SPL W/G | 14020-AZ002 | 14020-AZ002 doesn't include turbocharger assembly. ※This kit may require modification or additional fabrication of parts such as intake pipes. |
