【Concept and Features】
- HKS provides an easy solution of a single turbine set up kit for GTIII-4R turbo.
- This kit may require modification or additional fabrication of parts such as intake pipes.
- This kit doesn’t include turbocharger assembly.
- A great value combination with GTIII-4R.
【Kit Includes】
HKS cast Exhaust Manifold, HKS Special Wastegate (φ60), Wastegate return pipe, oil inlet and outlet pipe, flange, gasket, bolts and nuts etc.

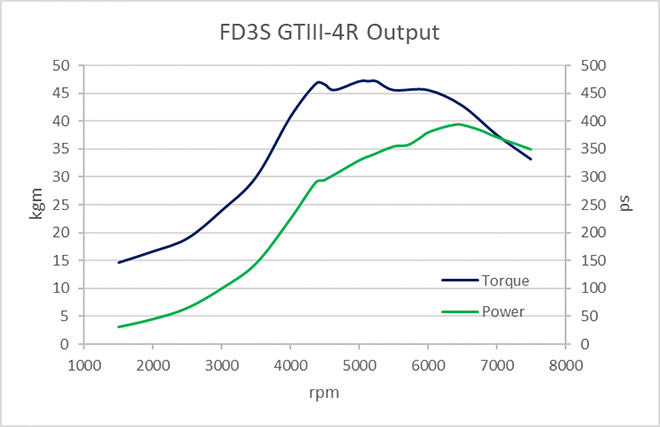

* The displayed power and torque are the values measured by our chassis dyno and may vary depending on the measurement equipment and individual vehicle differences.
| Test Vehicle | |
| Engine | Stock |
| T/M | Stock |
| Intake | HKS turbine kit suction SPF |
| Cooling | HKS R type Intercooler V mount, HKS oil cooler, Aluminum radiator |
| ECU | Stock ECU & F-CON V Pro 3.4, A/F Knock Amp. EVC6-IR2.4(108kPa) |
| Exhaust | Sports catalyzer |
| Vehicle | Model | Engine | Model Year | Type | Flange Size | Wastegate Type | Code No. | Remarks |
|---|---|---|---|---|---|---|---|---|
| RX-7 | FD3S | 13B-REW | 1993 - 1995 | SPECIAL SET UP KIT + GTIII-4R | T4 | SPL W/G | 14020-AZ003 | ※This kit may require modification or additional fabrication of parts such as intake pipes. |
