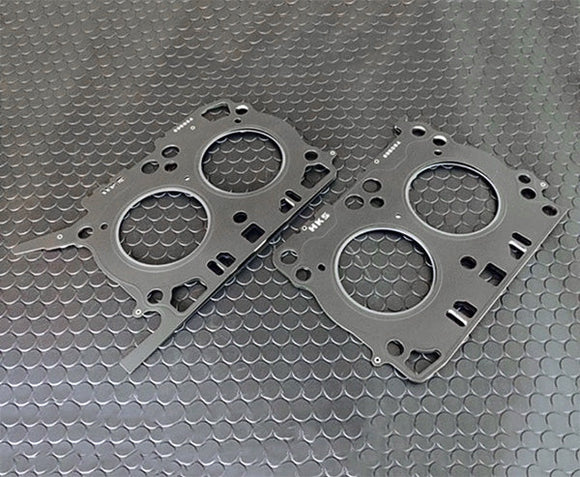

GROMMET TYPE HEAD GASKET FA20 t=1.2

GROMMET TYPE HEAD GASKET FA20 t=1.2

$485.99 CAD

HKS SKU: 23002-AT002

Description Availability

23002-AT002

High Boost Capacity Head Gasket



FA20 engine tuning through turbo and supercharging is becoming more and more popular. In these cases, many people will eventually experience the issue of head gasket failure.
To address this, HKS releases a new grommet type head gasket which takes things a step further than the existing stopper type gaskets.


Piston Gasket Thicknee
mm		 Compression
Ratio
Stock Stock 0.6 12.5
HKS ※1 HKS 0.8 10.8
HKS ※2 HKS 1.2 10.4

※These are design calculation ratios.
※2 FA20 2.1L KIT Low Comp (21004-AT003)





POINT

POINT-1

Gas seal surface pressure is maintained to increase the seal limits.

POINT-2

Combining with strengthened head bolts delivers even higher seal strength.

POINT-3

When combined with currently available stopper type gaskets, a wide range of thicknesses is now available delivering more compression ratio choices.



NOTE

With high surface pressure, the block/heads can warp. In order to overcome this, high thickness option is available to compensate for head/block machining.
