31021-BH003
Remarks
※ Measured by the US method.
About HKS muffler
*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.
*2: Main material in the component figure.
： SUS304/High quality stainless steel.
： SUH409/Stainless steel commonly used for stock exhaust.
*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.

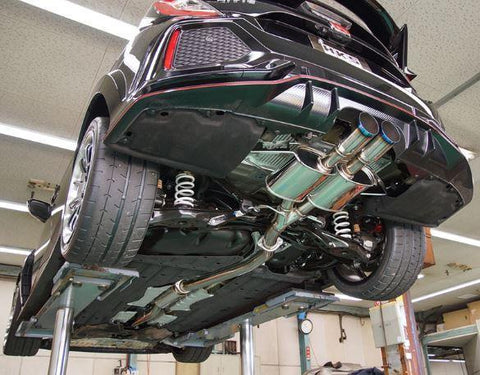

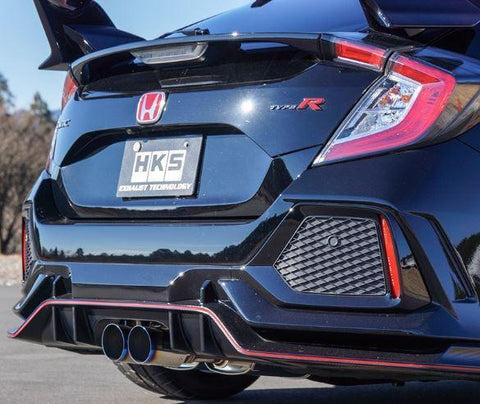

17+ Civic Type-R Legamax Premium Cat-Back Exhaust by HKS
The HKS Legamax Premium Cat-back Exhaust for the new 2017+ Civic Type R is the very first in their complete product lineup!
This exhaust increases piping diameter in each stage, making it a 3-inch main pipe to dual 2.4-inch pipes into the mufflers and finally out of dual 3.8-inch Burnt Titanium Tips. Overall the exhaust reduces back-pressure by 50%, this allows the turbine to spin more freely from a low RPM and improves overall power and response across the power-band.
This exhaust system has been engineered and designed to handle up to 540 ps (532 HP) without any power loss, so it's great for high power builds. It also features a dual muffler and small resonator that is guaranteed to provide zero drone for deep throaty note while still having a comfortable ride.
Features
- 3-inch to dual 2.4-inch catback system
- Dual 3.8-inch Titanium burnt tips
- Reduces back-pressure by 50% for increase in overall power
- Calculated to handle 500+ HP builds without power loss
- Same weight as OEM system while increasing exhaust flow
- Designed to be sporty but comfortable enough to daily
- Made in Japan
Applications
- 2017+ Honda Civic Type-R (FK8)
Specifications
- Piping Diameter: 75 to dual 60 [mm]
- Tip Diameter: Dual 97 [mm]
- Material: SUS304
- Idle Sound: 67 [db] (versus 58 db OEM)
- Sound: 88 [db] (versus 82 db OEM)
- Weight: 17.5 [kg] (same as OEM)
What's In The Box?
- 1 - HKS Legamax Premium Cat-Back
Warranty
- Manufacturer Standard Warranty
