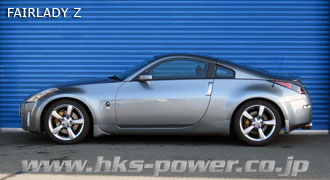

MAXIVSP Z33 FULL KIT

MAXIVSP Z33 FULL KIT

$2,394.00 CAD

HKS SKU: 80250-AN005

Earn 1 Point on this purchase. Learn more
Description Availability

80250-AN005

Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 667 638　※1 677 ～ 638 677 ～ 638
Against stock -10 -39　※1 0 ～ -39 0 ～ -39
REAR Ride height *1 677 644　※1 699 ～　645 699 ～　645
Against stock -22 -55　※1 0 ～ -54 0 ～ -54
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 137 ( 14 ) 157 ( 16 )
Free height (mm) 200 170
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 2800 / 600 1200 / 350
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 57 / 33 63 / 73
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 485 471 491 471 350 320 368 315
Spring
Set length(mm)		 238 238 238 238 - - - -
Length to ride hight
adjuster (mm)		 48 34 54 34 36 24 51 20
Lever ratio 1.54 1.59(spg) , 1.18(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 844 701
Tire size (Air pressure) kPa 225 / 45 - 18 ( 230 ) 245 / 45 - 18 ( 230 )
Wheel size 8 JJ × 18 inset 30 8.5 JJ × 18 inset 33
Alignment
(Toe/Camber)		 Test data 0 mm / -1°30' 0 mm / -2°30'
Standard value in 0～2 mm / -0°40' ± 45' in 1～3 mm / -1°35' ± 30'
* Test data at HKS.



Parts List * It may be changed without prior notice.
