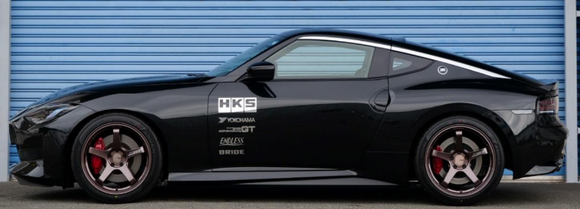

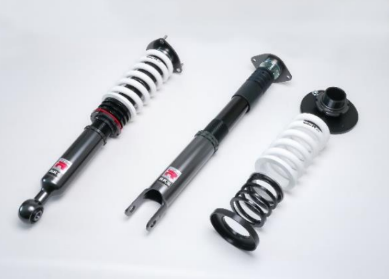

HKS Hipermax R RZ34 Full Kit 2022+ NISSAN Z

80310-AN007

Spring Rate [N/mm (kgf/mm)] F=216 (22)
R=255 (26)
Spring Length (mm) F=200 (Straight)
R=170 (Straight)

Helper Spring Rate [N/mm
(kgf/mm)]

F=19.8 (2)
R=19.8 (2)
Helper Spring Length (mm) F=70
R=70
Default Ride Height (mm)
(Upper / Lower Limit)

F=-27 (+1 / -56)
R=-26 (0 / -56)
*Compare to stock ride height
Upper Mount F=Spherical Bearing
R=Spherical Bearing
Damper Type F=Upright
R=Upright
Spring Rate Change F=Available
R=Available

Optional Spring
N/mm (kgf/mm)

F=±20 (2)
R=±20 (2)

Three New Features of
In addition to the latest technologies that are applied to the HIPERMAX S,

features the following NEW technologies

“SRF” (Super Response Fluid)

“LVS” (Low Vibration Spring)

“Upper Spring Retainer”

“SRF” (Super Response Fluid) Exclusive newly
developed Oil.
• Improved damper oil quality and viscosity.
• Improves characteristics of Damping force,
achieving great handling performance.
• Suppresses temperature change caused by
heat

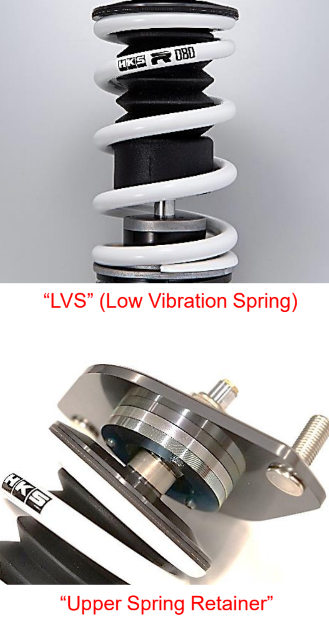

“LVS” (Low Vibration Spring) Exclusive high-
strength Spring.

• Manufactured with 210k grade high-strength
wire rods.
• Adopted to shorten wire length and reduce
weight.
• Improves Steering response.

“Upper Spring Retainer” Exclusive for
HIPERMAX R
• Allow the damping axis and spring load lines
to align coaxially
• Reducing of friction.
• Smoother damping.
