HKS I/C PIPING KIT FL5

13002-AH002

PIPING KIT for CIVIC TYPE-R FL5

■Features

Piping Kit

• Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
• The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.
• The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.

■Configuration

[Piping Kit Only]

• Aluminum bent pipe (IN/OUT)
• Cast pipe (IN/OUT)
• Silicone hose
• Hose band
• Bracket (IN/OUT)
• Special bolts and nuts

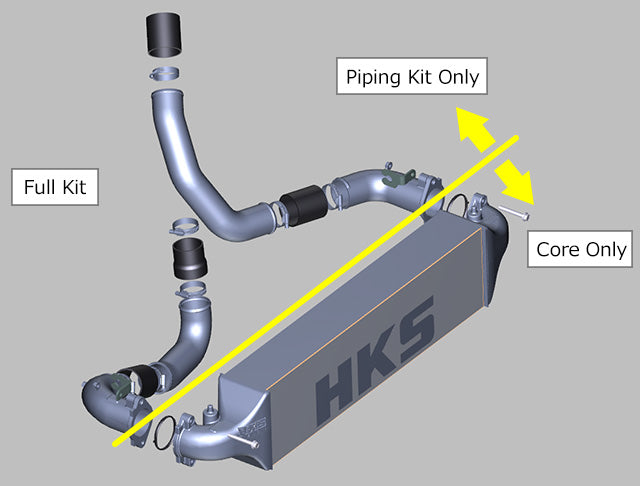

[Full Kit]

• Core only + piping kit


■Important Notes

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.

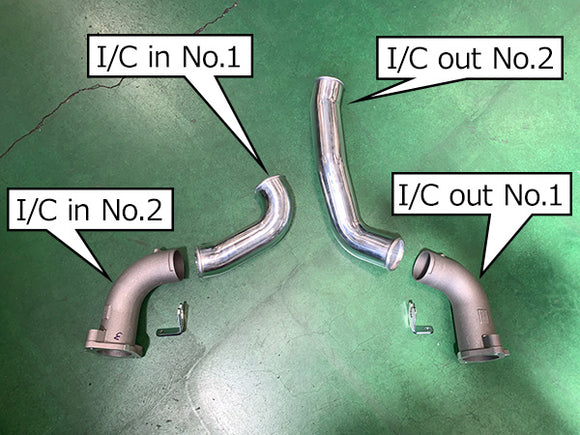

■Piping Comparison

	HKS	Stock
Exterior
Material & specs	in No.1：Aliminum bent pipe (inner diameter D60) in No.2：Aliminum casting (bracket separate) out No.1：Aliminum casting (bracket separate) out No.2：Aliminum bent pipe	in No.1：Rubber hose (inner diameter D55) in No.2：Aliminum casting (bracket separate) out No.1：Resin (with bracket) out No.2：Rubber hose

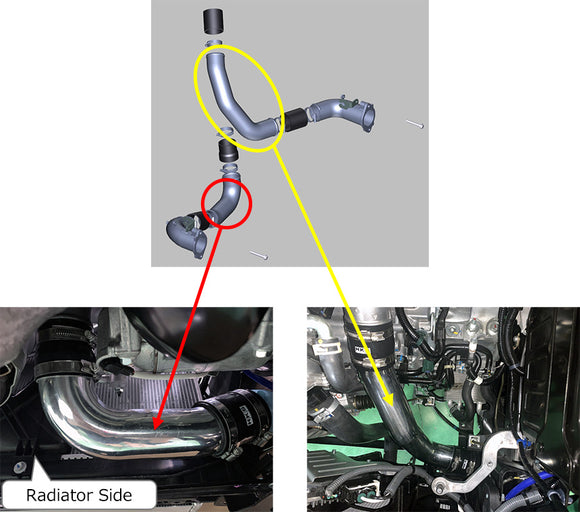

■Installation Images
