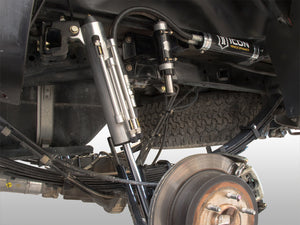

ICON 10-14 Ford Raptor Multi Rate Rxt Leaf Pack w/Add In Leaf

198501 Overview
The ICON Ford Raptor RXT multi-rate leaf pack offers a major performance gain for almost every Raptor setup imaginable. Features like 3 user-configurable rate options, tip inserts, and leaf separators add to ride comfort while a triple military wrapped front and rear half wrapped eyelet increases durability and strength of the leaf spring. A rebound leaf was added to reduce the axle wrap of the Raptor, which addresses another issue that has been found through ICON's extensive testing. To increase the ride quality of the truck and gain additional droop travel when the full ICON RXT rear system is installed, the spring rate was reduced slightly from the OE components. While most Raptor owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a chase rack, spare tires and parts, or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 10% or 20% spring rate that will h andle heavier vehicles.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
3 User-adjustable spring rates for unique setups or added weight
Triple military wrap front eyelet and rear half wrap for increased durability and safety
Rebound leaf reduces severe axle wrap
Tip inserts and leaf separators to reduce friction and improve ride comfort
OE style bonded rubber bushings that are maintenance free and do not squeak
Bumpstop extensions included for use when no aftermarket bumpstop kit is installed
New Ford OE front spring eye bolts included for easy removal and re-installation of springs
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103408873
Proxy Number 198501
Shipping Width 48.00 in
Shipping Length 48.00 in
Shipping Depth 10.00 in
Shipping Weight 104.0000 LB
Technical Notes
TECH NOTE: Not compatible with most aftermarket leaf spring shackles. OE shackles are recommended.
TECH NOTE: These leaf springs are sold individually. A quantity of 2 are required per vehicle.
TECH NOTE: Hardware kit part # 95220H also required for installation (sold separately)
