ICON 2014+ Ram 2500 2.5in Front Dual Rate Spring Kit

214200 Overview

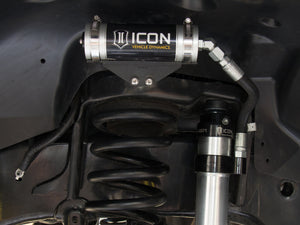

The ICON Vehicle Dynamics 2.5" Dual Rate Spring System for 2014-UP Ram 2500 / 2013-Up 3500 4WD levels out your truck and offers you both incredible ride quality and performance. This 2.5" dual rate spring system offers an initial soft ride zone with an aggressive second rate to help prevent bottoming out and are optimized for use on trucks equipped with diesel engines. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. Front extended length shocks are required for complete installation, and we offer 2.0 Aluminum Series smooth body and Remote Reservoir or our 2.5 Series Reservoir shock with or without CDC (Compression Damping Contol) Valve. All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON engineered dual rate coil springs
Increased wheel travel and ride quality over stock
Less body roll than stock
Front extended length shocks are required for complete installation
No drive shaft modifications needed
No change in towing capacity
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103400631
Proxy Number 214200
Shipping Width 13.00 in
Shipping Length 21.00 in
Shipping Depth 7.00 in
Shipping Weight 52.0000 LB
Technical Notes
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.5" wide wheel with 5.75" backspace
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Springs rates optimized for use with trucks with diesel engines
