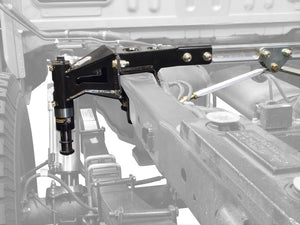

ICON 10-14 Ford Raptor Rear Hyd Bump Stop Kit

95120 Overview
ICON Vehicle Dynamics' Ford Raptor Rear Hydraulic Bumpstop System has been through extensive R&D, testing, and tuning before ICON could introduce a product we were confident in labeling the most comprehensive Raptor bumpstop solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
Easy bolt on installation without having to remove the truck bed
6061 Solid billet cross bar that is polished & anodized
Bumpstop striker pad does not require leaf spring disassembly
Comfortable on road manners with sufficient damping capability under extreme load
Hydro-pneumatic bumpstop increases bump energy capacity
Velocity sensitive hydraulic bumpstop increases the amount of energy absorbed the faster it is hit
Reduces rear end kick and improves overall performance
Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
Increases frame rigidity and improves overall vehicle dynamics
Industry first billet cross beam
Pre-tuned and Nitrogen charged for most Ford Raptors
Integrated adjustability for future ICON Raptor specific products
Linear-digressive piston which compliments a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
CAD Plated body for corrosion free service
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103407159
Proxy Number 95120
Shipping Width 15.00 in
Shipping Length 33.00 in
Shipping Depth 10.00 in
Shipping Weight 90.0000 LB
